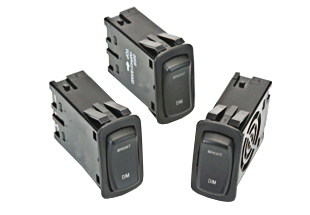

Carling Technologies LD3A1CC13AAFE1FC Electronic Dimmer Control
The Carling Technologies LD-Series represents a breakthrough in dashboard technology, featuring programmable circuitry, a superior design, and unparalleled performance. This electronic dimmer control is designed for seamless integration into most dash panels, ensuring compliance with stringent customer requirements. Typical applications include on/off-highway equipment, agricultural equipment, and construction equipment. The LD-Series offers a variety of options and aesthetics, making it a versatile solution for diverse industrial needs. It boasts robust electrical specifications, environmental resilience, and physical durability, ensuring reliable operation in demanding conditions.
Carling Technologies LD3A1CC13AAFE1FC Electronic Dimmer Control Specifications:
- Pole: 2-10
- VDC: 12-24
- Contact Rating: 9-16VDC, 2-10Amp
- Terminals: 6.3mm (0.250” TAB)
- Contacts: solid-state load switching
- Output PWM: 200 Hz
- EMI/EMC: SAE J1113 and SAE J1455
- Operating Temp: -40°C to + 85°C
- Vibration Resonance: 24-50 Hz 0.40DA, 50-2000 Hz ± 10 G’s peak
- Random Vibration: 9.36 grms @ 24 Hz
- Salt Spray: Per Mil-Std 202F, Method 101D
- Dust: Per Mil-Std 810C, Method 510.2
- Moisture Resistance: Per Mil-Std 202F, Method 106E
- Dielectric Strength: 000V @ 60 Hz for 1 minute
- Reverse Polarity: 24VDC for 5 minutes
- Function: Incremental for continuous dimming
- Operation: Momentary
- Lighted LED’s: internally dimmed
- Base: PBT Polyester V-0
- Rocker: Polycarbonate or Nylon 6/6, Glass filled
- Bracket: PBT Polyester V-0
- Connector: Nylon 6/6 toughened
- Actuation Force: 300 gm ± 50 gm
- Weight: 52 grams
- Panel Thickness Range: 0.030 to 0.156 (0.76mm to 3.96mm)
