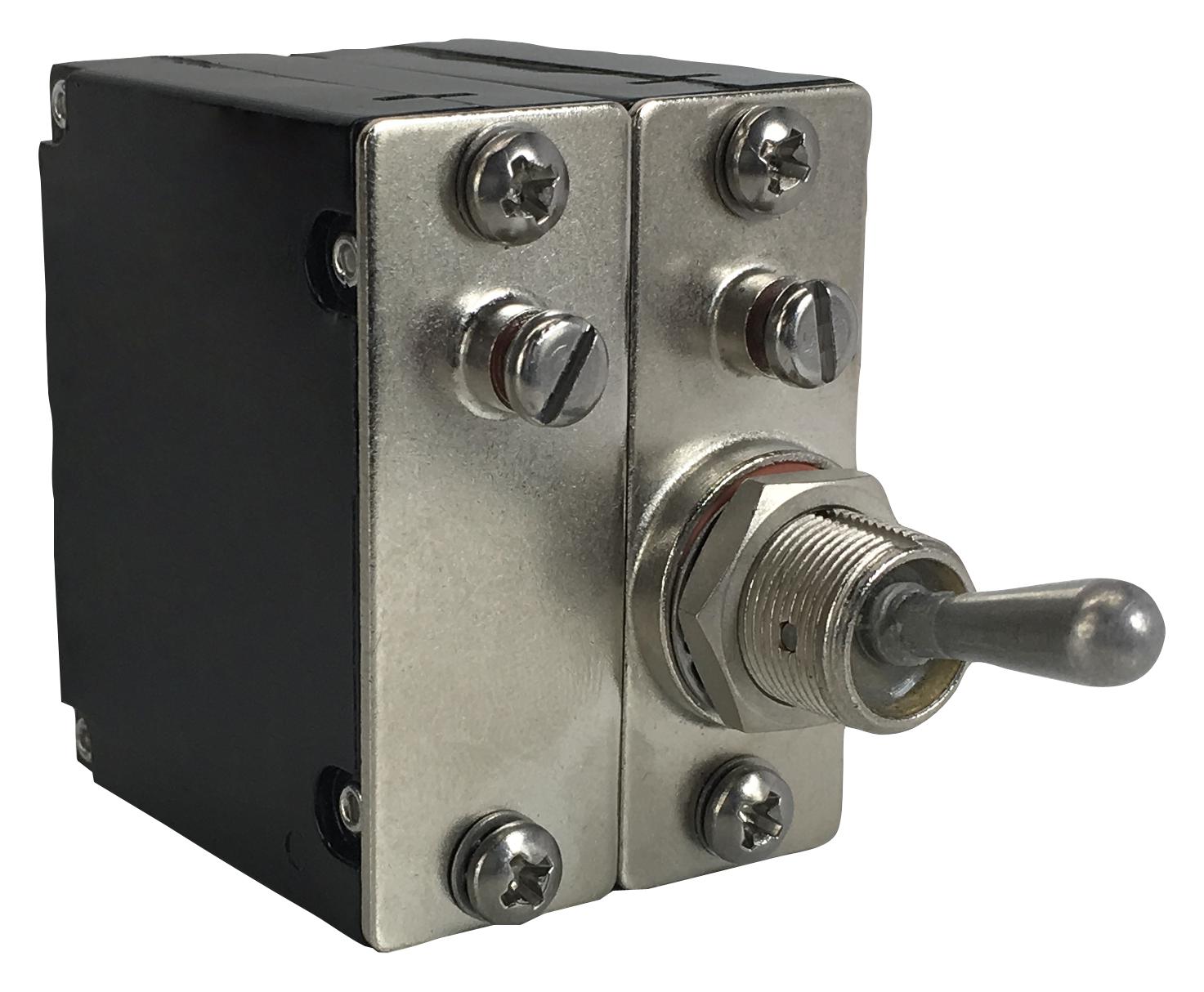

Carling Technologies AM2B034610201C Circuit Breaker
The product is a compact, reliable mechanical and electrical circuit breaker designed for industrial and commercial applications. It features multiple actuator styles, including push-on, rocker, and mid-trip handles, with ratings up to 50 amps at 277VAC or 80VDC. Suitable for harsh environments with sealed toggle options, and equipped with various mounting and terminal configurations for versatile installation. Certified under UL, CSA, VDE, and TUV, it is ideal for OEM, marine, renewable energy, and power control systems, ensuring safety, durability, and high performance.
Carling Technologies AM2B034610201C Circuit Breaker Specifications:
- Maximum Voltage: 277VAC 50/60 Hz, 80VDC
- Current Ratings: 0.02 to 50 amps
- Trip Free operation with overcurrent protection
- Electrical endurance: 10,000 ON-OFF cycles at rated current
- Insulation Resistance: Minimum 100 Megohms at 500 VDC
- Dielectric Strength: 1500V 60Hz for one minute between isolated terminals
- Operating Temperature: -40°C to +85°C
- Physical: 1-6 poles, various actuator styles including sealed toggle, paddle, rocker
- Dimensions vary by model, typical housing weight approximately 65g per pole
- Mounting options include front panel snap-in, threaded inserts, and surface mounts
- Certifications: UL Recognized, UL Listed, CSA, VDE, TUV
- Suitable applications: OEM, marine, renewable energy, power distribution, industrial devices
Buy the Carling 034610 U–2013 Reliable Circuit Breaker for Industrial Applications
Get your Carling circuit breaker online now for reliable, high-quality protection in industrial, marine, and renewable energy applications. Featuring UL, CSA, and VDE certifications, this breaker offers versatile actuator styles, robust construction, and certified safety standards. Easy to install with snap-in or threaded mounting options, and rated up to 50 amps at 277VAC or 80VDC, it ensures long-lasting performance. Protect your electrical systems with confidence—order your Carling breaker today for dependable operation and peace of mind in every project.
Order your Carling 034610 Series 8 circuit breaker today and enhance your power systems with durable, certified protection suited for demanding environments.
Frequently Asked Questions
Where can I buy Carling Technologies AM2B034610201C?
You can click on the BUY or RFQ button to purchase AM2B034610201C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part AM2B034610201C?
You can download the AM2B034610201C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of AM2B034610201C?
Carling Technologies
