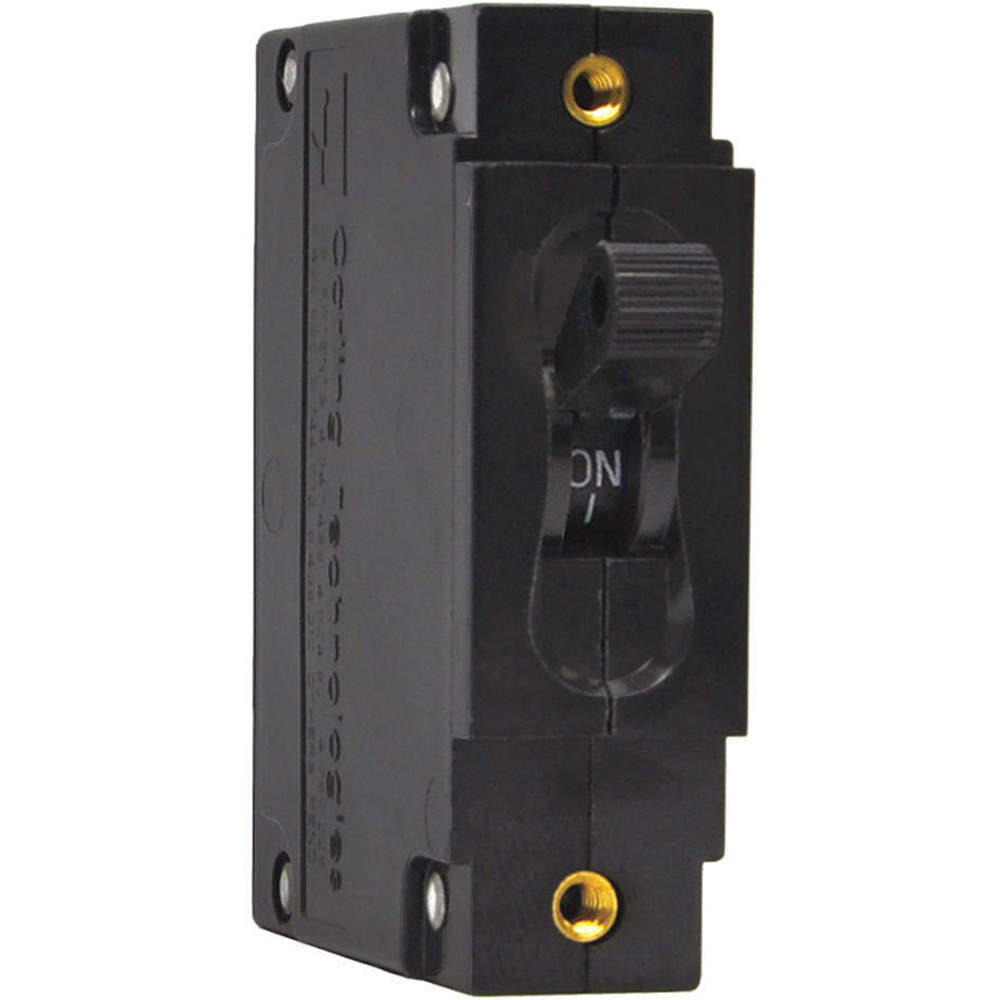

Carling Technologies CA1B014685321A C-Series Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker offers a compact and robust solution for high amperage and voltage applications. Available in configurations from one to six poles, these breakers are rated up to 100 amps, 480VAC/80VDC or 240VAC/125VDC. Parallel pole options extend ratings to 100-250 amps. The C-Series features a unique arc chute design, enabling higher interrupting capacities of up to 10,000 amps. Typical applications include marine, datacom/telecom, renewable energy, generators & welders, military, industrial automation, commercial food, and medical equipment.
Carling Technologies CA1B014685321A C-Series Circuit Breaker Specifications:
- Voltage: 480 WYE/277 VAC, 240 VAC, 125 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0, 100 amps
- Interrupting Capacity: Up to 10,000 amps
- Poles: 1-6
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC 1.0A, 65 VDC, 0.5A, 80VDC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz
Buy the CA1-B0-14-685-321-A CARLING TECHNOLOGIES C-Series Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CA1-B0-14-685-321-A C-Series Circuit Breaker securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CA1B014685321A?
You can click on the BUY or RFQ button to purchase CA1B014685321A from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CA1B014685321A?
You can download the CA1B014685321A datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CA1B014685321A?
Carling Technologies
