Carling Technologies CA2B024640321CG hydraulic magnetic circuit breaker
The product is a versatile series of hydraulic-magnetic circuit breakers designed for high amperage and voltage applications in compact packages. Suitable for industrial, marine, telecom, and renewable energy uses, it features arc chute design for higher interrupting capacity up to 10,000 amps, and sturdy thermoset polyester housing. Available in multiple poles, with options for time delay, terminal types, and indicator handles, these breakers ensure reliable overload protection, easy installation, and compliance with UL, CSA, VDE, and TUV standards.
Carling Technologies CA2B024640321CG hydraulic magnetic circuit breaker Specifications:
- Maximum Voltage: 480VAC WYE/277VAC, UL Recognized up to 480VAC, UL489 Listed up to 240VAC
- Current Ratings: 0.02-100 amps, with specific ratings at 0.10, 0.25, 0.5, 0.75, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0, 100 amps
- Interrupting Capacity: Up to 10,000 amps with arc chute design
- Poles: Configurable from 1 to 6 poles, pole configuration varies by model
- Housing Material: Thermoset glass filled polyester
- Terminal Options: Standard or Metric threaded stud terminals, saddle clamp screw terminals
- Trip Types: Overload trip with mechanical linkage, optional mid-trip handle with alarm feature
- Standards & Certifications: UL Listed, CSA Certified, VDE Certified, TUV Certified, compliant with MIL standards for shock, vibration, moisture, and thermal shock
- Dimensions: Customizable according to pole and configuration, with detailed dimensional specs for mounting and circuit integration
- Operation: Up to 10,000 ON/OFF cycles at 6 per minute, trip free under overload conditions

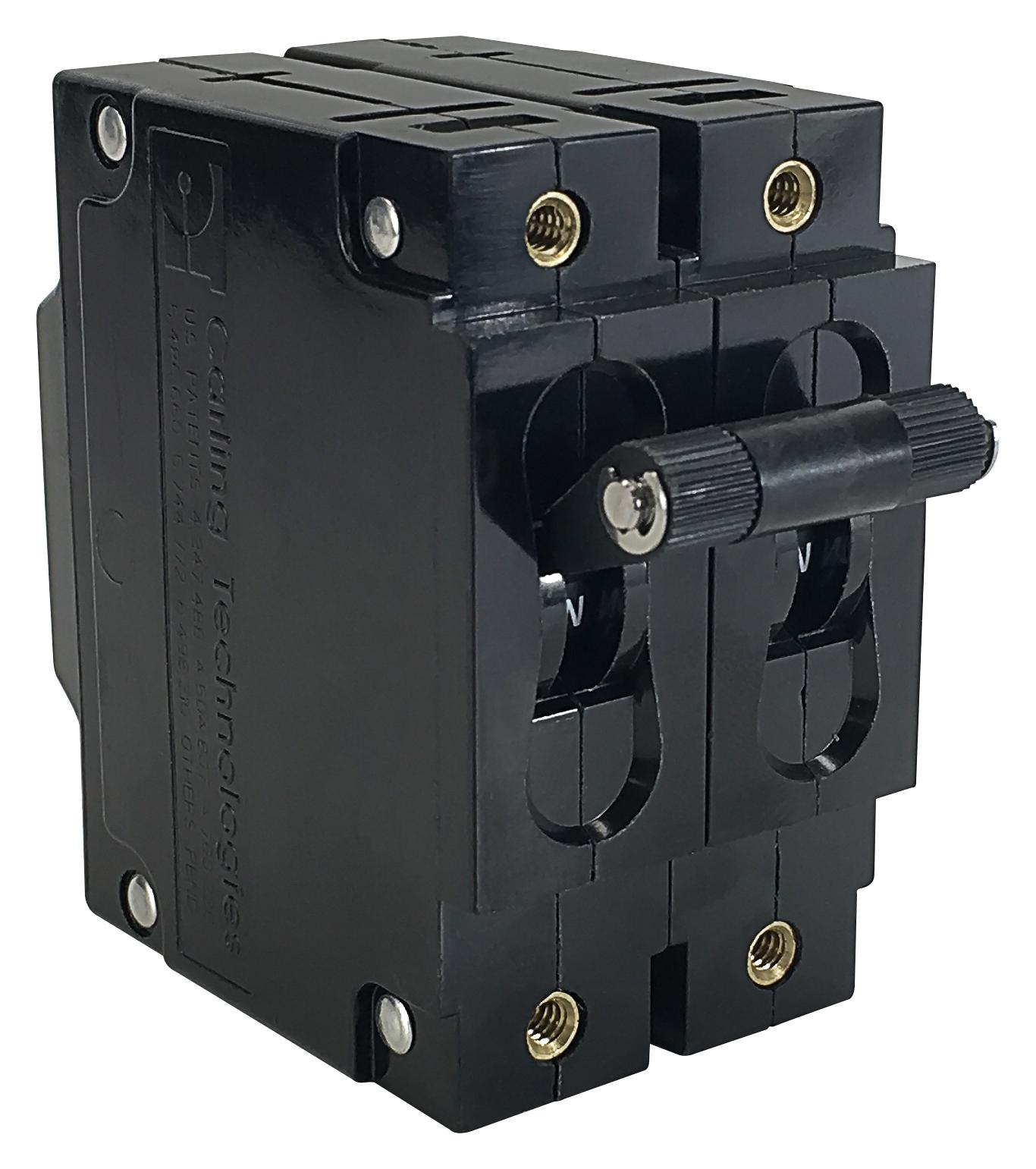

Buy the Buy Carling Hydraulic Magnetic Circuit Breaker Part Number CA2B024640321CG Online
Experience the superior protection of the Carling hydraulic magnetic circuit breaker, engineered for high performance in demanding industrial, marine, telecom, and renewable energy applications. With a robust arc chute design for interrupting capacities up to 10,000 amps, its compact form factor offers ease of installation across configurations from 1 to 6 poles. Features optional mid-trip overload indicators, various terminal types, and certified compliance with UL, CSA, VDE, and TUV standards. Ideal for safety, durability, and efficient overload interruption in critical power systems.
Get Carling CA2B024640321CG today—built for high amperage handling, reliable overload protection, and long-lasting durability in industrial and marine environments.
Frequently Asked Questions
Where can I buy Carling Technologies CA2B024640321CG?
You can click on the BUY or RFQ button to purchase CA2B024640321CG from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CA2B024640321CG?
You can download the CA2B024640321CG datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CA2B024640321CG?
Carling Technologies
