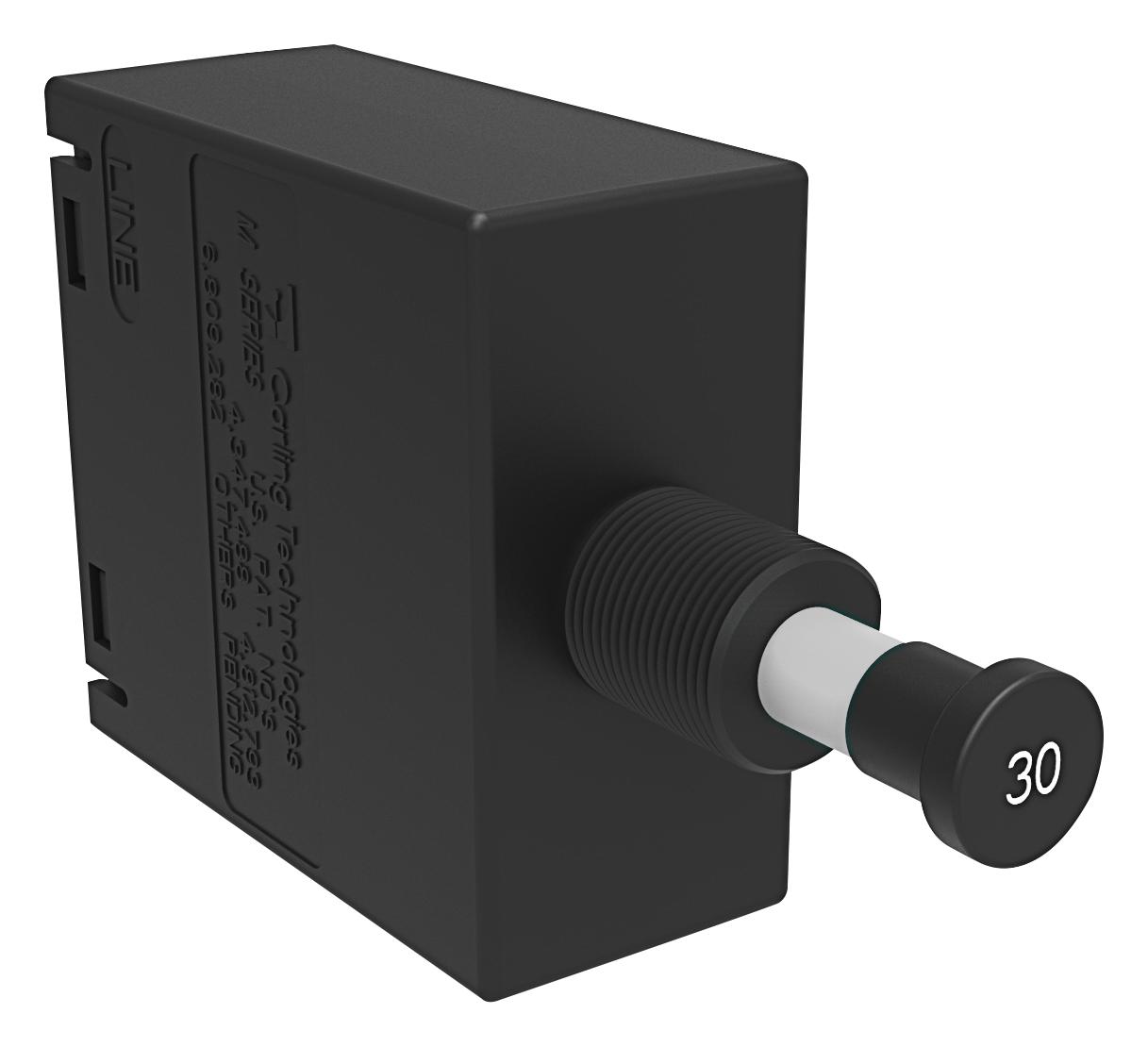

Carling Technologies MT1B146151A24BJ Circuit Breaker
The M-Series is a compact, cost-effective hydraulic-magnetic circuit breaker designed for versatile applications. It features front panel snap-in mounting, space-saving parallel pole configurations, and a variety of actuator styles including rocker, illuminated rocker, paddle, baton, push-to-reset, and push-pull. Certified to MIL-PRF-55629, MIL STD 202, and ingress protected per MIL-PRF-39019F, it offers current ratings from 0.02 to 50 amps, and voltage options of 125VAC, 250VAC, or 80VDC. Suitable for telecom, marine, power supplies, medical equipment, and industrial systems, it ensures reliable long-term operation and flexible design options.
Carling Technologies MT1B146151A24BJ Circuit Breaker Specifications:
- Maximum Voltage: 125/250 VAC 50/60Hz, 80 VDC
- Current Ratings: 0.02 to 50 Amps
- Dielectric Strength: 1500V AC/DC for 1 minute
- Insulation Resistance: >100 Megohms at 500 VDC
- Mechanical Endurance: 10,000 ON-OFF operations at rated voltage
- Temperature Range: -40°C to +85°C
- Environmental Resistance: Moisture, vibration, shock, salt spray
- Certifications: UL, CSA, VDE, TUV, MIL-PRF-55629, MIL STD 202G
- Physical: Parallel pole configuration, compact design, front panel snap-in mount
- Actuator Styles: Rocker, illuminated, paddle, baton, push-to-reset, push-pull
- Additional features: Bezel lockout, various terminal options, legend imprinting, multiple colors
Buy the Buy Carling Series M Circuit Breaker Part Number MT1B146151A24BJ Online
Enhance your electrical safety with the Carling Series M circuit breaker, featuring versatile actuator options, high current ratings up to 50A, and robust MIL-PRF, UL, CSA certifications. This compact, space-saving design is ideal for telecom, marine, and industrial applications, offering dependable long-term operation. With front panel snap-in mounting and a variety of legend options, it ensures quick installation and easy maintenance. Trust Carling's innovative design to give your system reliable protection and compliance with relevant standards—order online today for prompt delivery and excellent performance.
Order your Carling Series M 50A Parallel Pole Circuit Breaker MT1B146151A24BJ today and upgrade your projects with reliable, certified protection.
Frequently Asked Questions
Where can I buy Carling Technologies MT1B146151A24BJ?
You can click on the BUY or RFQ button to purchase MT1B146151A24BJ from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part MT1B146151A24BJ?
You can download the MT1B146151A24BJ datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of MT1B146151A24BJ?
Carling Technologies
