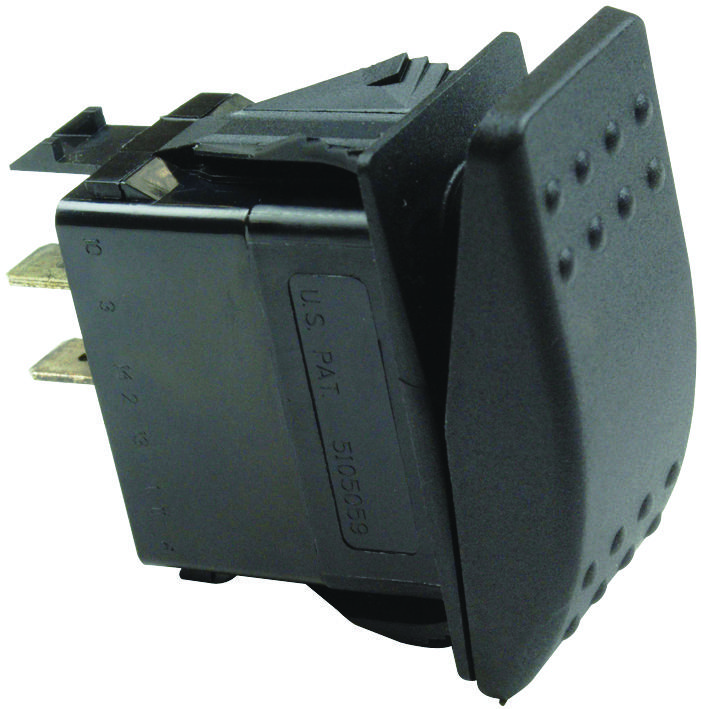

Carling Technologies V1D2S00BAZC00000 Sealed Rocker Switch
The V1D2S00B-AZC00-000 is a single-pole single-throw black rocker switch with a 0.250-inch tab terminal, panel-seal flush bracket, and durable thermoplastic Contura II actuator. It features an ON-OFF switching function, sealed for dust and water resistance rating IP66/IP68, and complies with UL1500 for marine ignition protection. Constructed with dual seals to prevent ingress, it supports up to ten terminals for complex circuits, and includes a connector for pre-wired assembly. The switch withstands Vibration, shock, thermal changes, moisture, and salt spray, making it ideal for industrial, military, aerospace, and marine applications in challenging environments. It maintains 50 MΩ insulation resistance and 1500 Vrms dielectric strength, ensuring reliable operation even under harsh conditions.
Carling Technologies V1D2S00BAZC00000 Sealed Rocker Switch Specifications:
- Switch Type: Single-pole single-throw (SPST)
- Material: Thermoplastic polycarbonate with nylon or elastomer overlays
- Actuator Color: Black with raised bump design
- Terminal Size: 0.250-inch tab terminals
- Sealing: Dual-seal protection with IP66/IP68 rating
- Dielectric Strength: 1500 Vrms
- Insulation Resistance: ≥50 MΩ
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP66/IP68
- Vibration & Shock Resistance: Yes
- Water & Dust Resistance: Sealed against dust, powerful water jets, and submersion
- Certification: UL1500 for marine ignition protection
- Application: Marine, military, aerospace, industrial environments
- Maximum Terminals Supported: Up to 10 for complex circuits
- Pre-wired Assembly: Includes connector for easy wiring
- Durability: Vibration, shock, thermal shock, moisture, salt spray resistant
Buy the Buy Carling Technologies V-Series Contura Switch Part Number V1D2S00BAZC000 Online
Purchase the Carling Technologies V1D2S00BAZC000 sealed rocker switch online today. This robust, IP66/IP68 rated switch features a durable thermoplastic actuator and dual seals for complete protection against dust, water spray, and submersion. Designed for demanding applications such as marine, military, aerospace, and industrial environments, it supports up to ten terminals for versatile circuit configurations. With a proven dielectric strength of 1500 Vrms and 50 MΩ insulation resistance, this switch guarantees reliable, long-lasting performance even under extreme conditions. Order now to secure dependable operation for your project needs.
Order your Carling Technologies V1D2S00BAZC000 sealed switch today and ensure reliable performance in harsh environments with IP66/IP68 protection.
Frequently Asked Questions
Where can I buy Carling Technologies V1D2S00BAZC00000?
You can click on the BUY or RFQ button to purchase V1D2S00BAZC00000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part V1D2S00BAZC00000?
You can download the V1D2S00BAZC00000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of V1D2S00BAZC00000?
Carling Technologies
