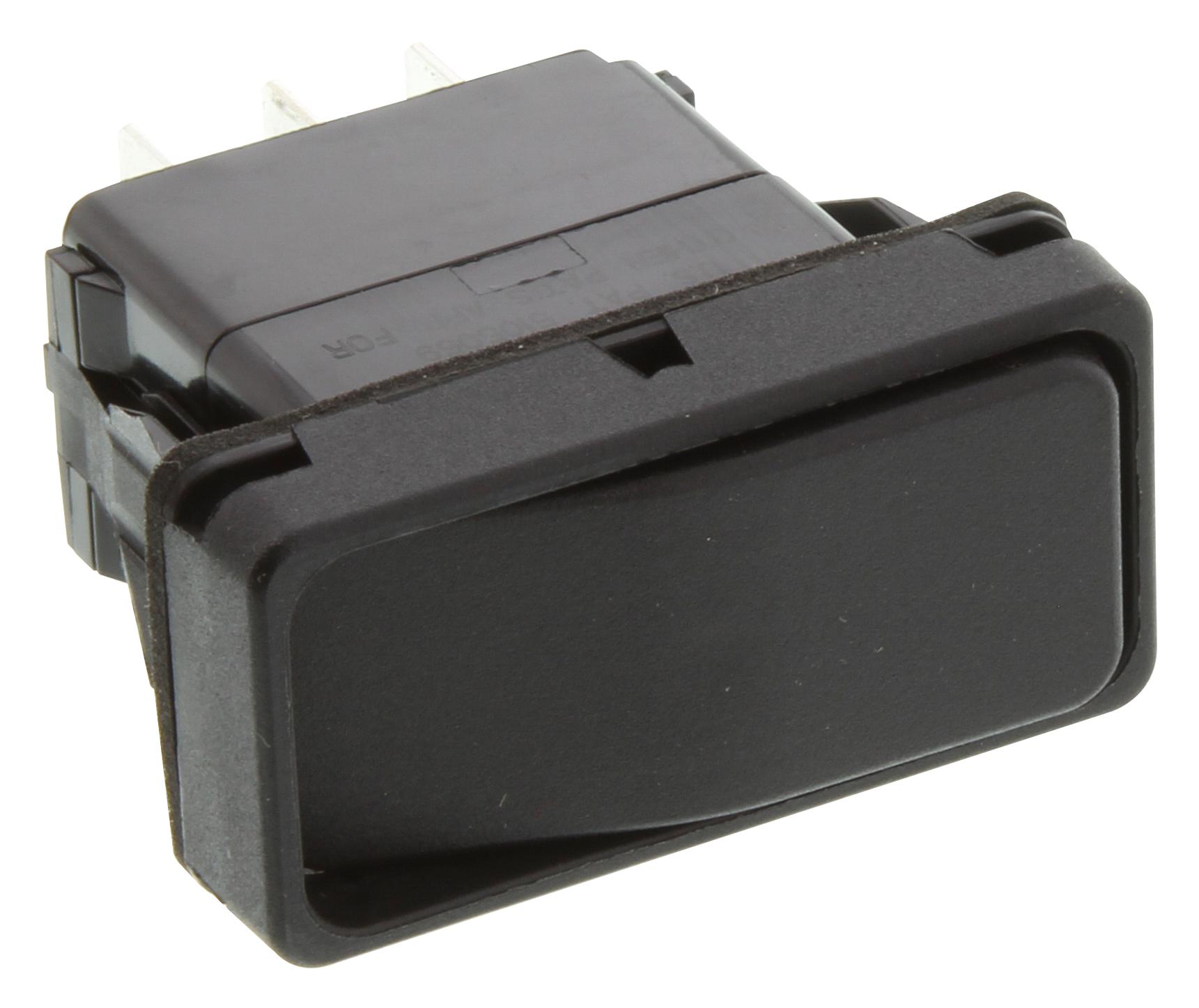

Carling Technologies VD51S0046ZZ00000 Sealed Rocker Switch
The V-Series Contura X, XI & XII sealed switches offer robust environmental protection, including IP66 sealing for dust and water resistance. Designed for industrial, marine, and heavy-duty applications, these switches feature removable actuators, a raised bezel to prevent accidental actuation, and various lens and legend options. They withstand shock, vibration, salt spray, and temperature ranges from -40°C to +85°C. Certifications include UL1500 for ignition protection, making them ideal for harsh environments like mining, maritime, or automation systems requiring reliable, sealed switching solutions with multiple circuit ratings and illumination options.
Carling Technologies VD51S0046ZZ00000 Sealed Rocker Switch Specifications:
- Sealing: IP66, protecting against dust and powerful water jets
- Contact Rating: 15A 125VAC, 10A 250VAC, 1/2 HP 125-250VAC, 20A 14-28VDC, 6A 125VAC L
- Dielectric Strength: 1500 Volts RMS
- Insulation Resistance: 50 Megohms
- Contact Resistance: Max 10 milliohms @ 4VDC
- Mechanical Life: 150,000 cycles minimum
- Electrical Life: 50,000 - 100,000 cycles depending on application
- Temperature Range: -40°C to +85°C
- Vibration and Shock Resistance: Yes, tested per MIL standards
- Corrosion Resistance: Yes, salt spray resistant
- Sealed internal construction, optional external gasket available
- Base material: Polyester blend rated to 125°C, UL94VO rated
- Lens Material: Polycarbonate rated at 100°C
- Actuator Travel: 18° (2 positions), 9° (3 positions)
- Terminals: Brass or copper/silver plated, quick connect or solder lug options
- Lighting: Incandescent (10,000 hrs), Neon (25,000 hrs), LED (100,000 hrs)
- Certifications: UL1500, CSA, IP66, MIL-STD compliance
- Applications: Marine, mining, heavy equipment, automation, industries needing environmental sealing
Buy the Carling VD51S0046ZZ00000 – Reliable Sealed Sealed Switch for Industrial Applications
Order the Carling VD51S0046ZZ00000 sealed rocker switch today and enjoy a durable, environmentally protected solution for industrial and marine control systems. Featuring sealed construction to IP66 standards, it resists dust, water jets, salt spray, shock, and vibration. With various illumination options, high cycle life, and reliable electrical ratings, this switch is ideal for heavy-duty equipment, mining machinery, and marine industry. Easy to install with multiple circuit ratings, it ensures safety, longevity, and seamless operation for your critical applications.
Buy Carling VD51S0046ZZ00000 now and experience unmatched reliability and performance in demanding environments.
Frequently Asked Questions
Where can I buy Carling Technologies VD51S0046ZZ00000?
You can click on the BUY or RFQ button to purchase VD51S0046ZZ00000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part VD51S0046ZZ00000?
You can download the VD51S0046ZZ00000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of VD51S0046ZZ00000?
Carling Technologies
