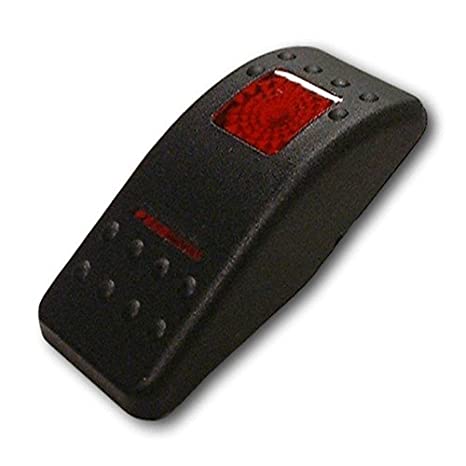

Carling Technologies VVASB00000 Sealed Rocker Switch
Carling Technologies’ V-Series Contura switches are designed for demanding environments, commonly used in marine, transportation, and industrial applications. These switches undergo rigorous testing, including MIL Std 202F and UL 1500, ensuring exceptional performance and durability. Features include dual seals for IP66 certification, silver-plated butt contacts for long electrical life, and a greaseless construction for temperature extremes. The switch accommodates up to 10 terminals and offers numerous illumination and circuit options, making it a versatile solution for various applications.
Carling Technologies VVASB00000 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4VA @ 24VDC (MAX) resistive
- Current Rating: 15 amps, 125VAC
- Voltage Rating: 10 amps, 250VAC
- HP Rating: 1/2 HP 125-250VAC
- DC Voltage Rating: 20 amps, 4-14VDC; 15 amps, 15-28VDC
- Dielectric Strength: 1500 Volts RMS
- Insulation Resistance: 50 Megohms
- Initial Contact Resistance: 10 milliohms max. @ 4VDC
- Electrical Life: 50,000 - 100,000 cycles
- Contacts Material: Silver alloy, silver tin-oxide
- Sealing: IP66 (front panel components)
- Corrosion Resistance: Applies to front panel components
Buy the VVASB00-000 CARLING TECHNOLOGIES Sealed Rocker Switch | myMectronic
Purchase the Carling Technologies VVASB00-000 Sealed Rocker Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies VVASB00000?
You can click on the BUY or RFQ button to purchase VVASB00000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part VVASB00000?
You can download the VVASB00000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of VVASB00000?
Carling Technologies
