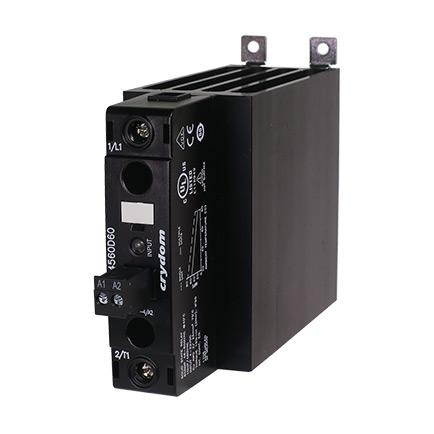

Crydom DR4560D60 Solid State Relay
The Crydom DR4560D60 is a powerful and compact solid state relay designed for DIN rail mounting. It offers a 60 Amp output rating at 40°C, providing flexibility in mounting and convenient input connection options. Its high I²t capability and optional built-in overvoltage protection make it suitable for demanding heating, motion, and lighting applications. The relay's cage clamp terminals accommodate wires up to 3 AWG size, reducing installation time and cost. It is ideal for plastic injection molding equipment, packaging equipment, industrial ovens, pump control, HVAC&R systems, and railway vehicles.
Crydom DR4560D60 Solid State Relay Specifications:
- Output Ratings: Up to 60 Amps at 600 VAC
- Control Voltage: 4-32 VDC
- Overvoltage Protection: Built-in
- Terminal Type: Cage clamp terminals (up to 3 AWG)
- Housing: IP20 touch-safe
- Load Current General Use: 45 Arms @ 40°C
- Load Current Motor Starting: 26 Arms @ 40°C
- Maximum Surge Current: 1290 Apk
- Maximum On-State Voltage Drop: 1.20 VRMS
- Ambient Operating Temperature: -40 to 80°C
- Minimum Insulation Resistance: 109 Ohms
- Short Circuit Current Rating: 100kA
- Weight: 500 g
- Input Voltage Range: 4-32 VDC
- Minimum Turn-On Voltage: 4 VDC
- Maximum Turn-Off Voltage: 1 VDC
