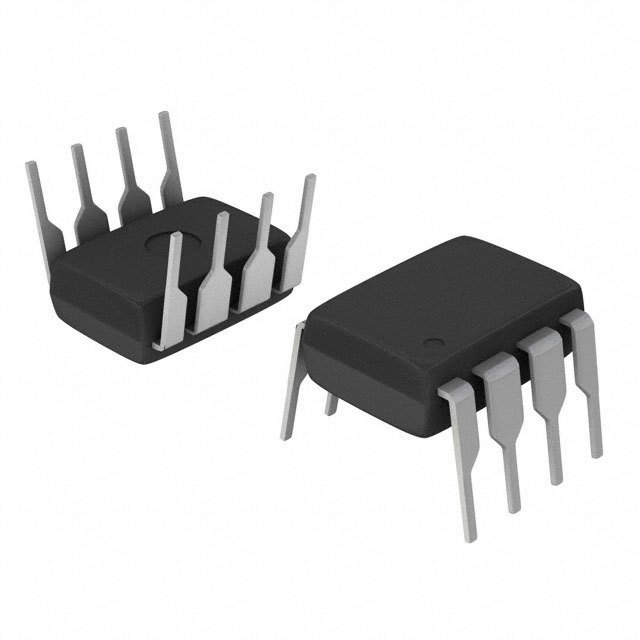

Crydom G22A03SR 2 Form A Solid State Relay
The Crydom G2-2A03-SR is a 2 Form A solid state relay, offering a reliable and efficient solution for switching AC or DC loads. It features a compact design and utilizes solid-state technology for fast response times and long operational life. Typical applications include industrial automation, lighting control, and motor control circuits. The relay's robust construction and high-performance characteristics make it suitable for demanding environments. Refer to the datasheet for detailed specifications and operating conditions.
Crydom G22A03SR 2 Form A Solid State Relay Specifications:
- LED Forward Current - Turn on: 3.4 mADC (Max)
- LED Forward Current - Turn off: 0.1 mADC (Typ)
- Recommended Forward Current: 40-15 mADC (Min-Max)
- LED Forward Voltage: 1.4-1.1 VDC (Min-Max)
- Maximum Input LED Forward Current: 50 mADC (Max)
- LED Reverse Voltage Withstand: 10 VDC (Max)
- Switching Voltage: 15 V PEAK (Max)
- Switching Current (Each Channel): 250 mA (Max)
- Switching Current (Both Channels Simultaneously): 150 mA (Max)
- Current Limit: n/a mA (Min), n/a mA (Max)
- On Resistance: 8 W (Max)
- Off State Resistance: 5000 GW (Typ)
- Off State Leakage Current (IF=0mA, VL=15V): 200 nA (Max)
- Off State Leakage Current (IF=0mA, VL=Max): 1 mA (Typ)
- Turn On Time: 1.5 ms (Max)
- Turn Off Time: 0.5 ms (Max)
- Capacitance Across Output (IF=0mA, VL=1V): 40 pF (Typ)
- Capacitance Across Output (IF=0mA, VL=50V): -
- Thermal Offset Voltage: 0.2 mV (Typ)
- Dielectric Strength - Input to Output: 3750 VRMS (Min)
- Capacitance - Input to Output: 1.2 pF (Typ)
- Power Dissipation: 600 mW (Max)
