DIALIGHT 24978683331504F industrial LED indicator

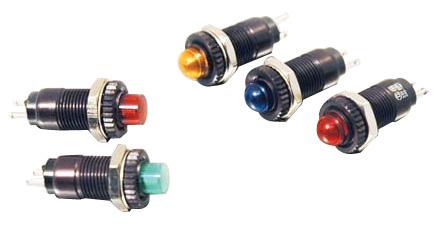

The LED indicator features a red panel-mount design with a cylindrical cap, housed in a black anodized aluminum casing. It is equipped with a knurled flanged nut for secure mounting and fused tin phosphor bronze terminals for reliable electrical connection. This low-power LED consumes up to 90% less energy than traditional incandescent indicators, generating no heat. Resistant to shock and vibration, it includes polarity indication with the terminal marked (+) for the anode. The indicator has a lifespan of approximately 100,000 hours, requires 8-10 in-lbs mounting torque, and operates from -20°C to 71°C, making it suitable for industrial environments.
DIALIGHT 24978683331504F industrial LED indicator Specifications:
- Housing Material: Black anodized aluminum
- Lens Type: Cylindrical or stovepipe with Fresnel design
- Operating Voltage: 6, 5, 10, 14, and 28V DC (recommend tolerance of 5%)
- Current: Requires current limiting resistor
- Dimensions: Diameter approximately 9.53 mm with a height of 12 mm
- Mounting: Front or rear panel
- Terminals: Fused tin phosphor bronze, terminal marked (+) for anode
- Power Consumption: Up to 90% less energy than incandescent counterparts
- Lifespan: Approximately 100,000 hours
- Shock and Vibration Resistance: Yes
- Temperature Range: -20°C to 71°C
- Color Options: Red, yellow, green, blue
- Certifications: ROHS Compliant
- Torque: 8-10 in-lbs
- Polarity: Indicated by terminal (+) for anode
- Housing Finish: Black anodized aluminum
Buy the Dialight 24978683331504F – Reliable Signal Indicator for Industrial Applications
Purchase the high-brightness industrial LED indicator online today and enjoy reliable, energy-efficient signaling solutions. Designed for durability with long lifespan, robust housing, and versatile mounting options, it is ideal for power indication, status alerts, and process control. Featuring low power consumption, shock resistance, and a wide operating temperature range, this indicator assures consistent performance. Order now to enhance your automation and maintenance operations with a proven, durable LED indicator designed for demanding industrial applications.
Get Dialight 24978683331504F today—built for precision, durability, and energy-efficient signaling in industrial environments.
