DIALIGHT 5503509F Led Indicator
The 5mm LED circuit board indicator offers bi-color, common cathode design, and is available in red/green and yellow/green options. It features high contrast, UL 94 V-0 rated black housing, and supports multiple array configurations on 7.62mm centers. The device is UL recognized, with solderability per MIL-STD-202F, and safe for direct viewing per IEC 825-1. It is suitable for various indicator and signaling applications, providing reliable performance with a 65° viewing angle and high luminous intensity. Dimensions and features enhance PCB integration and ease of assembly in industrial settings.
DIALIGHT 5503509F Led Indicator Specifications:
- Color Options: Red/Green, Yellow/Green
- Wavelength: 635/565 nm for Red/Green, 583/565 nm for Yellow/Green
- Peak Voltage: 2.1/2.3 V for Red/Green, 2.1/2.1 V for Yellow/Green
- Forward Current: 25 mA
- Peak Current: 90 mA
- Power Dissipation: 135 mW
- Viewing Angle: 65°
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -55°C to +100°C
- Soldering Temperature: 260°C for 5 seconds
- Housing: Black, UL 94 V-0 rated, polymer-based
- Mounting: Compatible with mounting clip 515-0004
- Dimensional Tolerance: ±0.02 mm (housing), ±0.04 mm (LED protrusion)
- Dimensions: Diameter 5 mm, lead length approximately 25.14 mm
- Certifications: UL Recognized, MIL-STD-202F compliant solderability
- Application: Industrial indicators, control panels, signaling systems, front panels

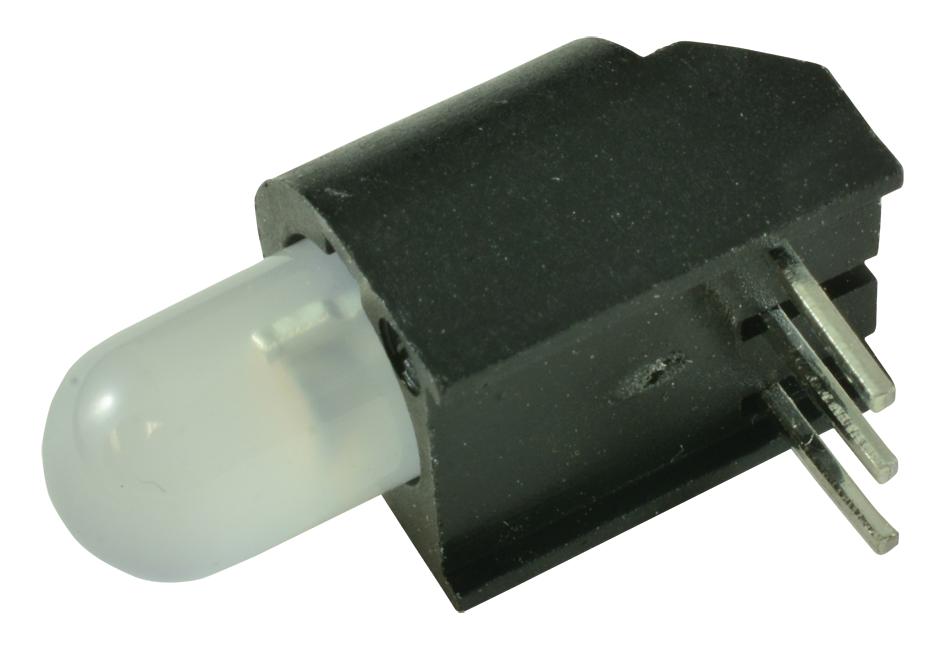

Buy the Buy Dialight LED Indicator Part Number 5503509 Online
Purchase the Dialight Series5503509 LED indicator online today for high-performance bi-color signaling in industrial applications. Equipped with a durable, UL-rated black housing, this 5mm LED offers excellent contrast and visibility with a 65° viewing angle. Designed for easy PCB mounting, it supports high current operation and complies with MIL-STD-202F soldering standards. Whether for control panels, machinery, or indicator lights, this LED ensures reliable service and clear status indication in various environments. Get your best prices and swift delivery online now.
Order your Dialight Series5503509 LED indicator today and enhance your industrial signaling systems with high-quality, reliable performance.
Frequently Asked Questions
Where can I buy DIALIGHT 5503509F?
You can click on the BUY or RFQ button to purchase 5503509F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5503509F?
You can download the 5503509F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5503509F?
DIALIGHT
