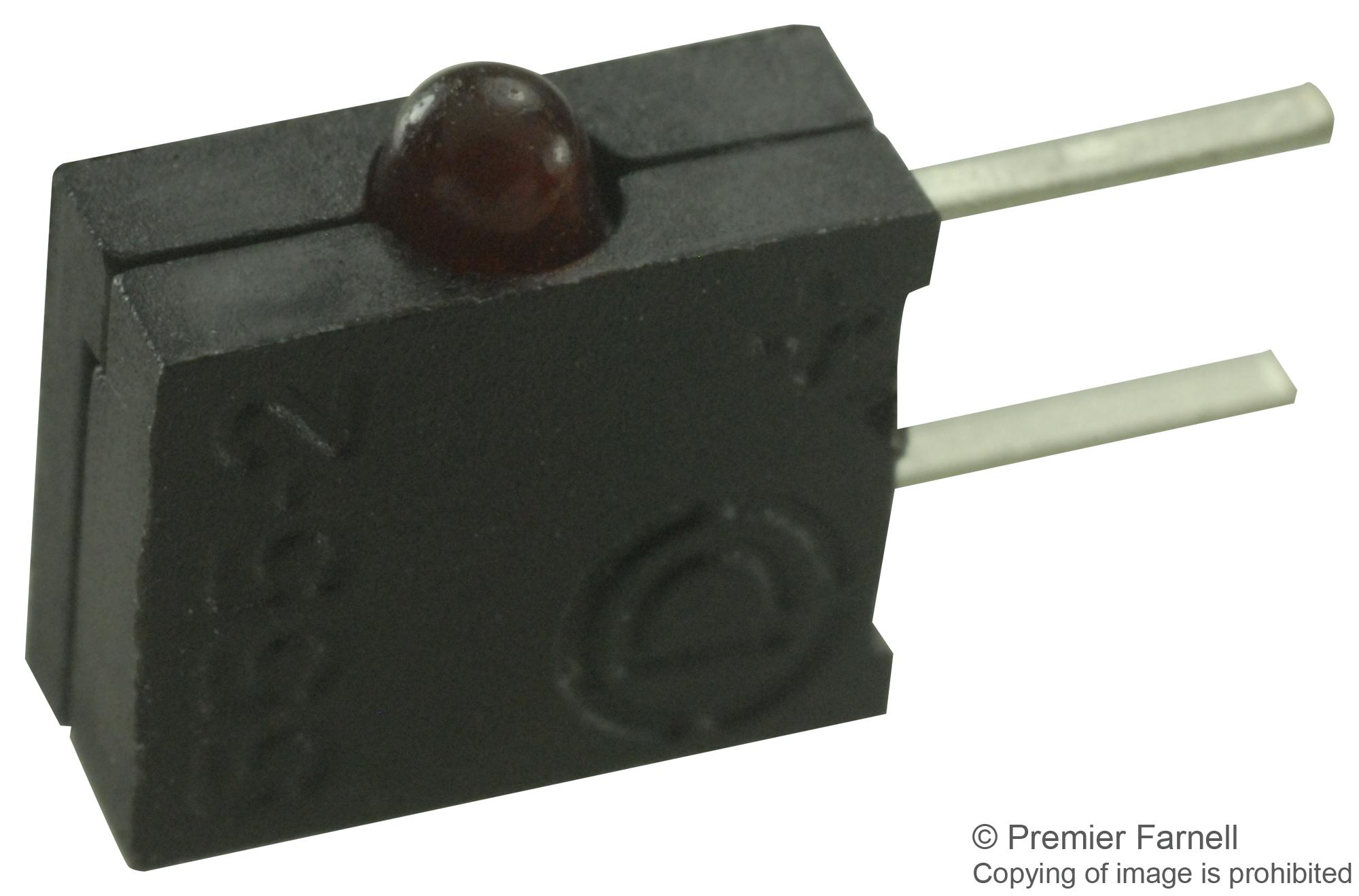

DIALIGHT 5552001F LED Indicator
This product comprises a compact, general-purpose diffused LED indicator designed for circuit board mounting applications, featuring high contrast, UL 94 V-0 rated black housing, and PCB stand-offs that facilitate cleaning. Available in various colors including red, green, and yellow, it operates at multiple voltages with integral resistors. The LED modules support horizontal array formation on a 2.54mm center-line pitch, are solderable per MIL-STD-202F, method 208F, and are IEC 825-1 and EN-60825-1 safe for direct viewing, making them suitable for industrial visual indication systems.
DIALIGHT 5552001F LED Indicator Specifications:
- Dimensions: 2mm diameter, PCB hole pattern 109 mm in finches
- Housing Material: Black UV-resistant polymer (PBT), UL 94 V-0 rated
- Operating Voltage Range: Various voltages (5V, 24V, 14V, etc.) with integral resistors
- Mounting: Through-hole mounting on 2.54mm centers
- Temperature Range: -55°C to +100°C for operating and storage conditions
- Soldering Temperature: 260°C for 5 seconds, 1.6 mm from case
- Luminous Intensity: Min 1 to 6 medcd depending on model
- Peak Wavelength: 565-650 nm based on color
- Viewing Angle: 40°
- Forward Voltage: 1.6V for red, 2.4V for green, 2.2V for yellow, up to 24V for certain models
- Peak Current: 250 mA
- Reverse Voltage: 3V for standard models, up to 25V for some integral resistor types
- Compliance: UL, IEC 825-1, EN-60825-1 safety standards
Buy the Dialight 555-2001 – Reliable LED Indicator for Industrial Applications
Order the Dialight LED Indicator 555-2001 now and equip your industrial panel with high-contrast, reliable visual signaling. Designed for robust PCB mounting and compliant with safety standards, this diffused LED supports multiple voltages through integral resistors, making it versatile for various automation and control systems. Its durable housing, easy solderability, and wide temperature range ensure long-term operation. Purchase online today for fast delivery, ensuring your projects stay on schedule with dependable indicator components.
Get Dialight 555-2001 today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 5552001F?
You can click on the BUY or RFQ button to purchase 5552001F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5552001F?
You can download the 5552001F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5552001F?
DIALIGHT
