A Premier B2B Part Search

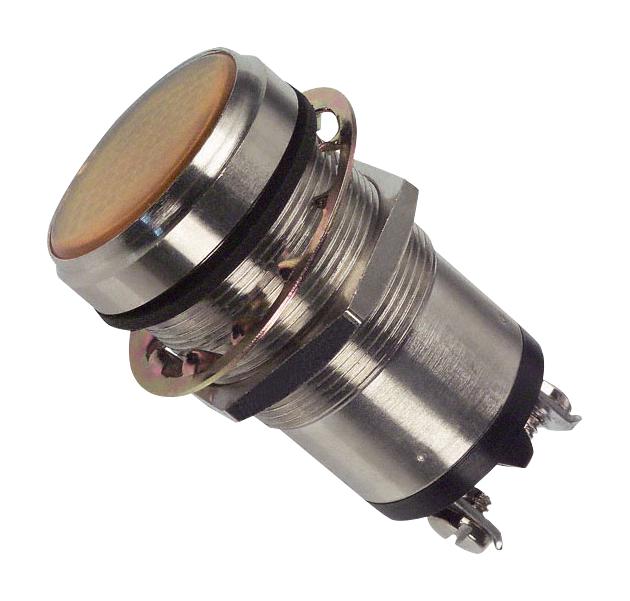

DIALIGHT 5561904304F LED Panel Indicator
The 556 Series high-intensity LED panel mount indicators are designed for durable outdoor applications, offering watertight protection with NEMA 4X IP66 sealing. Suitable for 1-inch panel holes, these indicators feature multi-LED technology for uniform brightness and long life expectancy of up to 100,000 hours. They are available in multiple colors and voltage options including 12 VDC, 24 VDC, 125 VAC, and 230 VAC, making them ideal for lane control, safety, transportation, and industrial displays. Their polycarbonate lenses ensure visibility in sunlight, with front mounting ease and high durability for harsh environments.
DIALIGHT 5561904304F LED Panel Indicator Specifications:
- Housing material: Nickel plated brass
- Lens material: Polycarbonate 94 – VO
- Dimensions: Max. panel thickness 0.089 inches, lens options: flat and domed
- Voltage range: 12 to 125 VDC, 125 and 230 VAC
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +100°C
- Sealing: Watertight front seal meets NEMA 4X IP66
- Mounting hole: 1 inch diameter
- Maximum Mounting Torque: 40 in./lb.
- Color options: Red, yellow, green, blue, white, orange, cyan
- Luminaire luminance: Up to 4000 cd, with various current ratings depending on color and voltage
- Certifications: UL recognized, NEMA 4X, IP66 durability
- Technology: InGaN and AllnGaP LEDs for high intensity and long life
- Application suitability: Lane control, safety, transportation, display lighting, gaming, vending
Buy the Dialight 556 Series – Reliable LED Panel Indicators for Industrial Applications
Order Dialight 556 Series LED Panel Mount Indicators online today to enhance your safety systems, control panels, or transportation displays. Designed for durability and clear visibility, these indicators feature watertight NEMA 4X IP66 sealing. Available in multiple colors and voltage configurations, they are perfect for outdoor and industrial environments. Experience long-lasting performance with up to 100,000 hours of illumination. Easy front mounting, high impact resistance, and superior brightness make these indicators ideal for lane control, safety, and display applications in harsh conditions. Shop now for reliable, high-intensity LED indicators with fast shipping and excellent support.
Get Dialight 556 Series indicators today—built for precision, durability, and outdoor safety applications.
Frequently Asked Questions
Where can I buy DIALIGHT 5561904304F?
You can click on the BUY or RFQ button to purchase 5561904304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5561904304F?
You can download the 5561904304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5561904304F?
DIALIGHT
