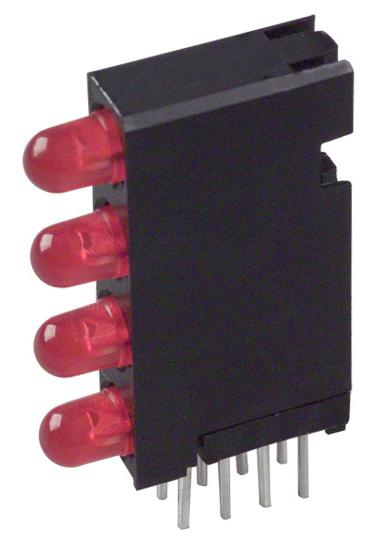

DIALIGHT 5680101111F LED Circuit Indicator
This 3mm LED circuit board indicator offers high efficiency and reliable performance across various colors including red, green, and yellow. Designed for quad-level and bi-color applications, it features an integral resistor option for 5V operation. The LEDs are suitable for panel and circuit board indication with a viewing angle of approximately 60°. Available in multiple configurations, these LEDs provide excellent brightness with low current consumption, making them ideal for electronic displays, status indicators, and control panels in industrial and electronic systems. Custom color combinations and mounting options are also supported.
DIALIGHT 5680101111F LED Circuit Indicator Specifications:
- Peak Wavelength: Red 635 nm, Green 565 nm, Yellow 585 nm
- Test Current: 10 mA (High Efficiency), 2 mA (Low Current), 5 mA (Integral Resistor)
- Viewing Angle: approximately 60°
- Forward Voltage: Red 2.0V, Green 1.9V, Yellow 1.6V
- Voltage Rating: 2-5 V depending on configuration
- Indicator Size: 3mm diameter
- Color Options: Single color (Red, Green, Yellow), Bi-color (Green/Red, Green/Yellow)
- Housing: CBI (Circuit Board Indicator) with optional custom colors
- Operating Temperature: -40°C to +100°C
- Mounting: Through-hole on PCB with standard pattern
- Certifications: UL recognized, RoHS compliant
- Current Range: 2 mA to 12 mA depending on type
- Package Includes: LEDs with integrated resistor options
- Application: Panel indicators, status lights, electronic displays
Buy the Buy Dialight High Efficiency LED Part Number 5680101111 Online
Order the Dialight 5680101111 LED circuit board indicator online today for exceptional visibility and energy-efficient operation. Designed for industrial and electronic uses, this 3mm LED offers high brightness, low power consumption, and versatile color options including red, green, yellow, and bi-color combinations. It is suitable for mounting on circuit boards or panels, providing clear status indication in control and display systems. With robust construction and certified quality, this indicator ensures reliable operation across diverse environments, making it the ideal choice for technicians and engineers seeking durable, high-performance LEDs for their projects.
Get Dialight 5680101111 today—built for high brightness, reliable performance, and long-lasting durability in electronic and industrial indicators.
Frequently Asked Questions
Where can I buy DIALIGHT 5680101111F?
You can click on the BUY or RFQ button to purchase 5680101111F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5680101111F?
You can download the 5680101111F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5680101111F?
DIALIGHT
