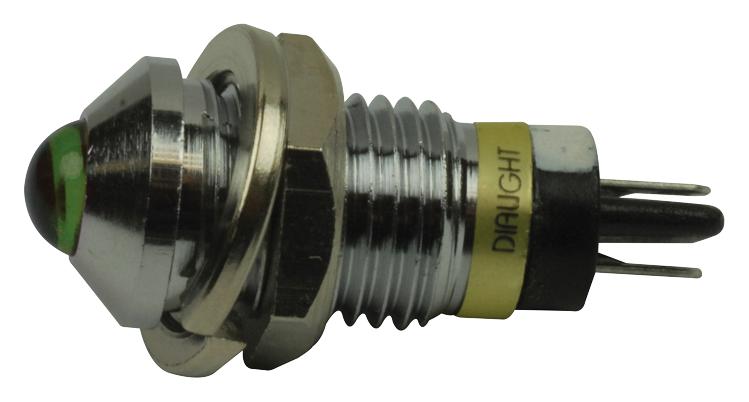

DIALIGHT 6071212110F LED Panel Indicator
The LED Panel Mount Indicator from the 607 Series provides reliable illumination for industrial control panels with a 7.2mm mounting hole, offering optional watertight capability. It features a chrome plated brass or polycarbonate housing, suitable for operating temperatures from -30°C to +85°C, and storage temperatures from -40°C to +85°C. The product connects via solder terminals and complies with NEMA 4X/IP66 standards for watertight sealing. Available in multiple LED color options, the indicator ensures excellent visibility and durability in demanding environments.
DIALIGHT 6071212110F LED Panel Indicator Specifications:
- Mounting Hole Diameter: 0.283 inches (7.2 mm)
- Maximum Panel Thickness: varies (see datasheet)
- Housing Materials: Chrome plated brass, Polycarbonate
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Watertight Seal: NEMA 4X/IP66 compliant
- Electrical Connection: Solder terminals
- Voltage Options: 2 VDC (with resistor), 6/12/24 VDC (no resistor)
- Current: 15 mA
- LED Colors & Models: Red, Green, Yellow, recessed and internal variants
- Mounting: With lock washer and nut, recommended torque 0.362 Ibs/ft or 5 Kg/cm
- Dimensions: Varied as per model, typically around 0.147 inches (3.75 mm) thickness
- Certifications: NEMA 4X, IP66 compliance
Buy the LIQUO Series 607 LED Panel Indicator: Waterproof Control Panel Light Part Number 6071212110F
Enhance your control panels with LIQUO 607 Series LED Panel Indicators, designed for durability, reliable illumination, and watertight performance. Suitable for various industrial applications, these indicators offer multiple color options, easy solder terminal connections, and robust housing materials such as chrome plated brass and polycarbonate. They meet demanding standards with NEMA 4X/IP66 sealing, ensuring protection against water and dust. Easy to install with recommended torque and available in different models for recessed or internal mounting. Perfect for panel indicator needs in harsh environments, ensuring clear status visibility and long-lasting performance.
Buy LIQUO 607 Series LED Panel Mount Indicators now and experience unmatched reliability with watertight sealing for industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6071212110F?
You can click on the BUY or RFQ button to purchase 6071212110F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6071212110F?
You can download the 6071212110F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6071212110F?
DIALIGHT
