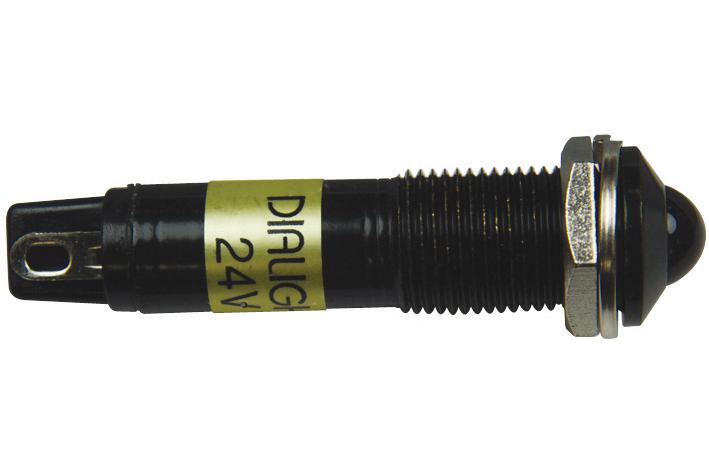

DIALIGHT 6091122140F LED Indicator
The 609-1122-140F is a durable red front panel mount LED indicator with a chrome or black plated brass housing, suitable for various industrial applications. It offers low power consumption—up to 90% less than incandescent indicators—while providing long-lasting performance with a lifespan of up to 100,000 hours. The LED can protrude externally or be embedded within its housing, connecting via solder terminals. Operating between -30°C and 85°C, it is ideal for LED lighting and status indication in industrial and control systems.
DIALIGHT 6091122140F LED Indicator Specifications:
- Voltage Requirements: 6, 12, or 24 VDC (no resistor required)
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Housing Material: Chrome plated brass or black painted brass
- Mounting Hole Size: 0.368 inches [9.35 mm]
- Dimensions: Typical panel thickness 0.318 inches [8.0 mm], maximum panel thickness 0.376 inches [9.50 mm]
- LED Color: Red
- LED Intensity: 15 mA current, 6 VDC (typ. 150 mcd)
- Connection: Solder terminals
- Seal: Watertight front panel meets NEMA 4X/IP66
- Mounting: With lock washer and nut, torque 0.362 lbs/ft or 5 Kg/cm
- Voltage Current: 15 mA
- Lifespan: Up to 100,000 hours
Buy the Dialight 609-1122-140F – Reliable Red Indicator for Industrial Applications
Purchase the Dialight LED Indicator for reliable, energy-efficient status and warning signaling in industrial control panels. Featuring a durable brass housing with chrome or black plating, it provides long lifespan up to 100,000 hours and low power consumption, consuming up to 90% less energy than traditional incandescent indicators. Easy to install with solder terminals, suitable for panel thickness up to 0.376 inches, and meets waterproof standards NEMA 4X/IP66. Perfect for industrial automation, machinery, and equipment status lighting.
Get Dialight 609-1122-140F today—built for long-lasting durability and energy-efficient status indication in industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6091122140F?
You can click on the BUY or RFQ button to purchase 6091122140F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6091122140F?
You can download the 6091122140F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6091122140F?
DIALIGHT
