A Premier B2B Part Search

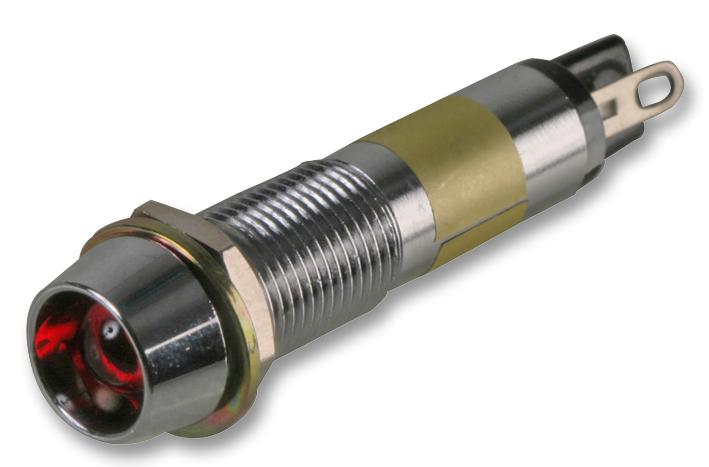

DIALIGHT 6092112140F LED Panel Indicator
The 609 Series LED Panel Mount Indicators are designed for reliable visual status indication in industrial applications. They feature a 9.35mm mounting hole, optional watertight sealing meeting NEMA 4X/IP66 standards, and operate on 6, 12, or 24 VDC without resistors. Made of durable chrome-plated or painted brass, these indicators support a wide temperature range from -30°C to +85°C and are mounted securely with a lock washer and nut. Suitable for main power, remote indication, maintenance alerts, and instrumentation needs, ensuring robust and clear signal visibility.
DIALIGHT 6092112140F LED Panel Indicator Specifications:
- Voltage requirements: 6, 12, and 24 VDC (no resistor needed)
- Mounting hole size: 0.368 inches [9.35 mm]
- Maximum panel thickness: 0.376 inches [9.50 mm]
- Housing Material: Chrome plated brass or painted brass
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Watertight Seal: Meets NEMA 4X/IP66 standards
- Electrical connection: Solder terminals
- Mounting: With lock washer and nut (torque: 0.362 lbs/ft or 5 kg/cm)
Buy the Dialight 6092112140F – Reliable LED Panel Indicators for Industrial Applications
Experience dependable visual signaling with the LED Panel Indicator perfect for industrial applications. Easy to install with a 9.35mm mounting hole, it features water resistance, durable brass housing, and clear LED illumination. Suitable for main power, remote status, maintenance alerts, and instrumentation, operating from 6 to 24 VDC. Its robust design ensures performance in harsh environments, handling temperatures from -30°C to +85°C. Ideal for technicians and engineers seeking reliable, long-lasting indicator solutions for control panels and instrumentation setups.
Get Dialight 6092112140F today—built for precise status indication and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6092112140F?
You can click on the BUY or RFQ button to purchase 6092112140F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6092112140F?
You can download the 6092112140F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6092112140F?
DIALIGHT
