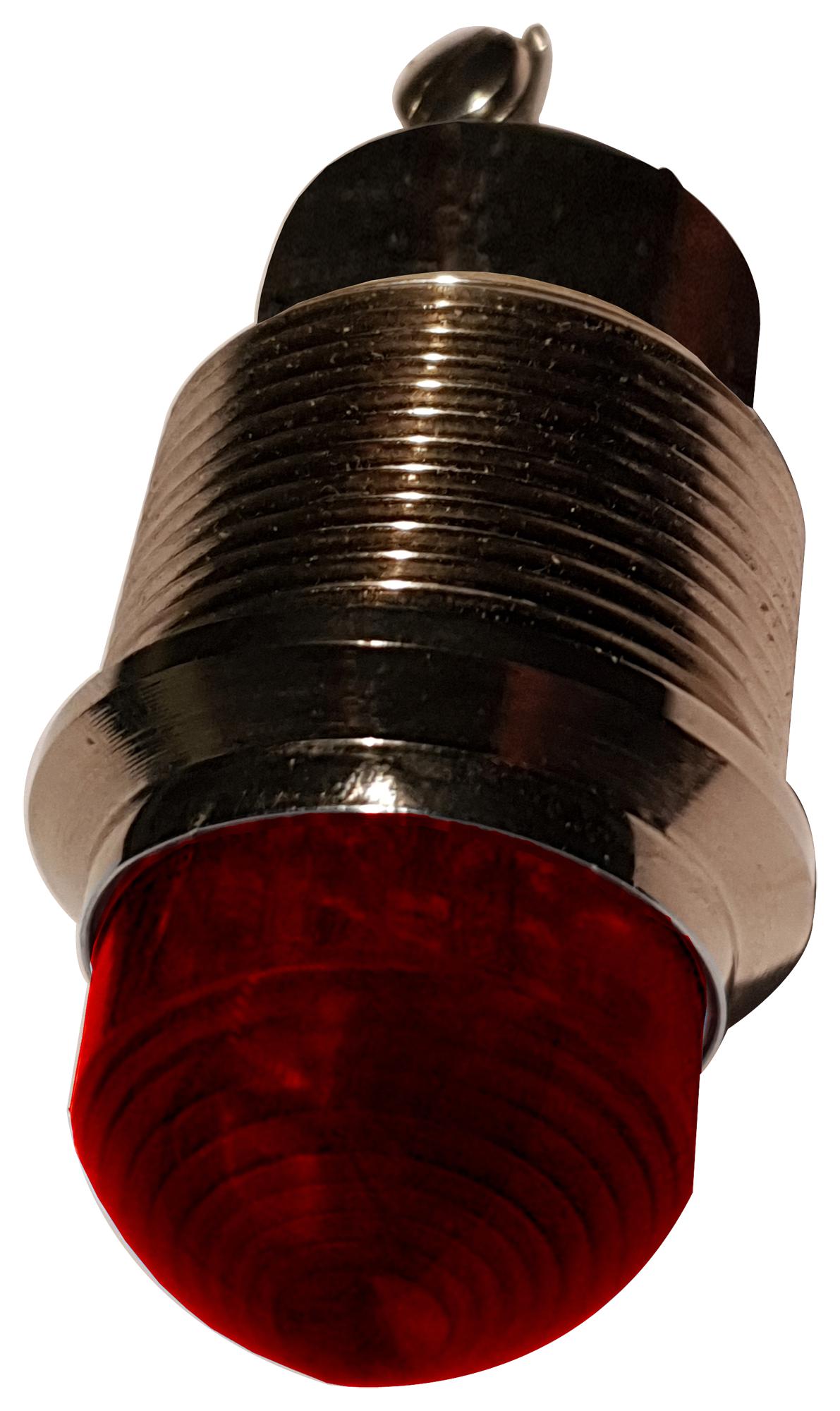

DIALIGHT 6303504304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators combine InGaN and AlInGaP technologies to deliver maximum light output and exceptional durability. Designed for demanding outdoor environments, these indicators withstand rain, dust, and sunlight. They are commonly used in instrument panels, pump system controllers, safety applications like mining and oil refineries, UL 508 panel applications, petrochemical controls, environmental monitoring equipment, and power generators. The housing is brass with a white nickel plating, while the terminals are brass with a hot solder dip per Mil-F-14072D, M258, Type II. The lens material is transparent polycarbonate (UL 94-0).
DIALIGHT 6303504304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
- Typical Current: 9.5-10.5 mA (120 VAC), 32-95 mA (12/24 VDC)
