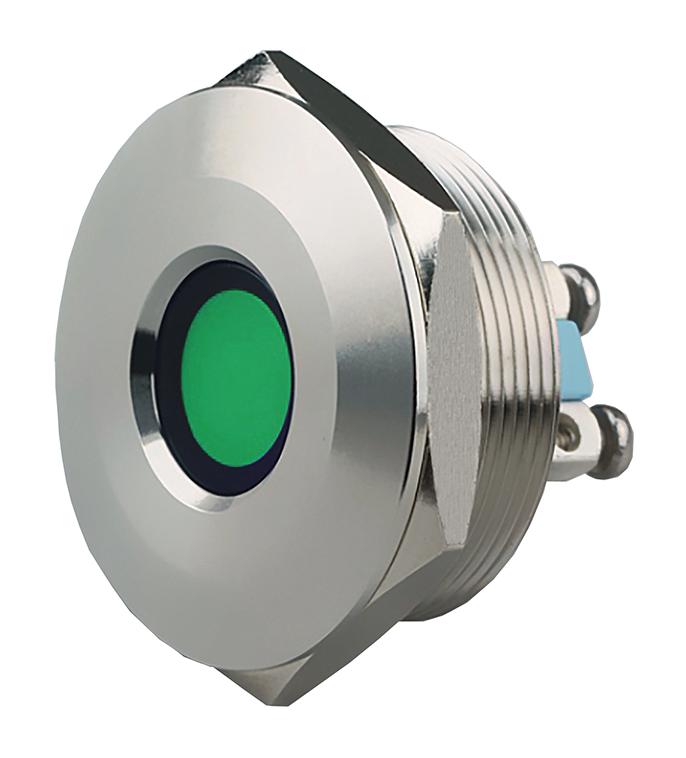

DIALIGHT 6231204304F Heavy Duty Panel Indicator
The 623 Series Heavy Duty LED Panel Mount Indicators are designed for durable indoor and outdoor use, featuring corrosion resistance, IP66/IP67, IK10, and NEMA 4X ratings. They operate at 3, 6, 12, and 24 VDC, with internal resistors included for some voltages, making them suitable for main power, remote power, and status indications in industrial settings. Constructed with stainless steel housing and secured to prevent dirt, dust, and water ingress, these indicators provide reliable signaling for instrumentation and maintenance applications in harsh environments, combining aesthetic appeal with sturdy construction.
DIALIGHT 6231204304F Heavy Duty Panel Indicator Specifications:
- Operating Voltage: 3 VDC (external resistor required), 6, 12, & 24 VDC (internal resistor included)
- Housing Material: Stainless Steel
- Mounting Hole Size: 30mm (1.18 inches)
- Max Panel Thickness: 10mm (0.394 inches)
- Operating Temp: -25°C to +70°C (-13°F to 158°F)
- Storage Temp: -25°C to +70°C (-13°F to 158°F)
- Electrical Connection: Screw terminals
- Certifications: IP66/IP67, IK10, NEMA 4X
Buy the Dialight Series 623 LED Panel Indicator: 6231204304F
Experience reliable signaling with the robust Dialight Series 623 LED Panel Indicator, designed for industrial applications. Made with corrosion-resistant stainless steel housing, it features IP66/IP67, NEMA 4X, and IK10 ratings for exceptional durability. Suitable for main power, remote, and status indications, it operates at 3, 6, 12, and 24 VDC, with internal resistors for specific voltages. Easy to install with screw terminals, perfect for harsh indoor and outdoor environments requiring durable, high-performance indicator lighting.
Order your Dialight Series 623 Indicator 6231204304F today and ensure reliable, heavy-duty signaling for your industrial projects in harsh environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6231204304F?
You can click on the BUY or RFQ button to purchase 6231204304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6231204304F?
You can download the 6231204304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6231204304F?
DIALIGHT
