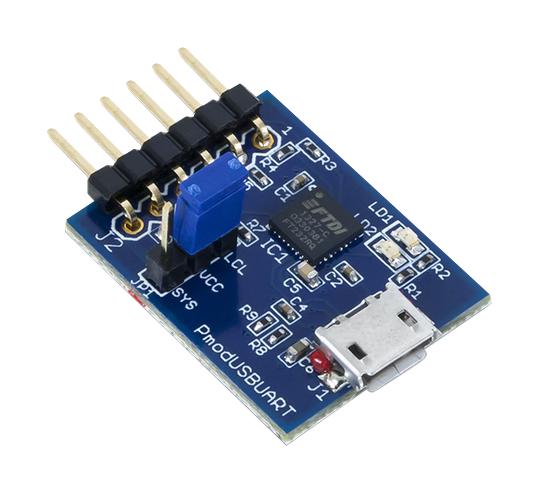

DIGILENT 410212 USB to UART Serial Converter
The Digilent PmodUSBUART is a versatile USB to UART serial converter module, ideal for applications requiring serial communication with a host computer. It utilizes the FTDI FT232RQ chip for cross-conversion, allowing data to be transmitted in either direction. The module features a micro USB connector, a 6-pin Pmod connector, and supports powering the system board through the FTDI chip. Its compact size and adherence to the Digilent Pmod Interface Specification Type 4 make it suitable for a wide range of embedded systems and prototyping projects.
DIGILENT 410212 USB to UART Serial Converter Specifications:
- transfer_rate: Up to 3 Mbaud
- connector_type: Micro USB, 6-pin Pmod
- power_supply: 2.5V - 5.5V (recommended 3.3V)
- pcb_size: 1.0" x 0.8" (2.5 cm x 2.0 cm)
- pin_spacing: 100 mil
- uart_signals: ['RTS', 'RXD', 'TXD', 'CTS']
- power_options: LCL3V3 (independent power) or SYS3V3 (powered by FTDI chip)
- led_indicators: ['LD1 (USB to UART data transfer)', 'LD2 (UART to USB data transfer)']
- chipset: FTDI FT232RQ
Buy the 410-212 DIGILENT USB to UART Serial Converter | myMectronic
Purchase the Digilent PmodUSBUART 410-212 securely and reliably for your next project.
Buy Now
Frequently Asked Questions
Where can I buy DIGILENT 410212?
You can click on the BUY or RFQ button to purchase 410212 from an authorized DIGILENT distributor.
How do I troubleshoot issues or seek technical support for part 410212?
You can download the 410212 datasheet or visit the DIGILENT website for support.
Who is the manufacturer of 410212?
DIGILENT
