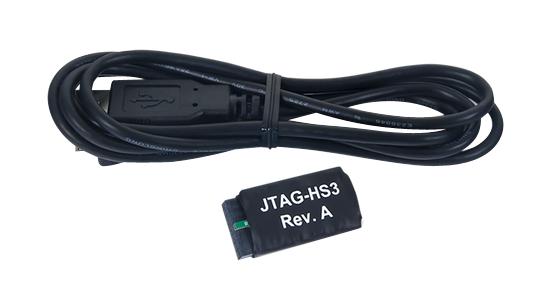

DIGILENT 410299 JTAG Programming Cable
The DIGILENT JTAG-HS3 programming cable provides a high-speed programming and debugging solution for Xilinx FPGAs and SoCs. Designed for seamless integration with Xilinx tools like iMPACT, ChipScope, EDK, and Vivado, it utilizes a high-speed USB2 port capable of driving JTAG bus speeds up to 30Mbit/sec. The cable's separate Vref pin allows for signal voltage control between 1.8V and 5V, making it versatile for various target boards. It also includes an open drain buffer for debugging Zynq platforms, enhancing its functionality for advanced development.
DIGILENT 410299 JTAG Programming Cable Specifications:
- compatible_with: Xilinx ISE 14.1+, Vivado 2013.3+
- usb_port: High-Speed USB2
- bus_speed: Up to 30Mbit/sec
- vref_voltage: 1.8V to 5V
- connector_type: Micro-AB USB2
- supports_devices: Xilinx FPGAs, Zynq-7000, CoolRunner/CoolRunner-II CPLDs, Platform Flash ISP configuration PROMs, Select third-party SPI/BPI PROMs
- not_compatible_with: Xilinx 9500/9500XL CPLDs, 1700/18V00 ISP configuration PROMs, FPGA eFUSE programming
- open_drain_buffer: Pin 14 for Zynq debugging
- vref_pin: Supplies JTAG signal buffers
- resistor_protection: 100 ohm series resistor on pin 14
Buy the 410-299 DIGILENT JTAG Programming Cable | myMectronic
Purchase the DIGILENT JTAG-HS3 Programming Cable securely and reliably online.
