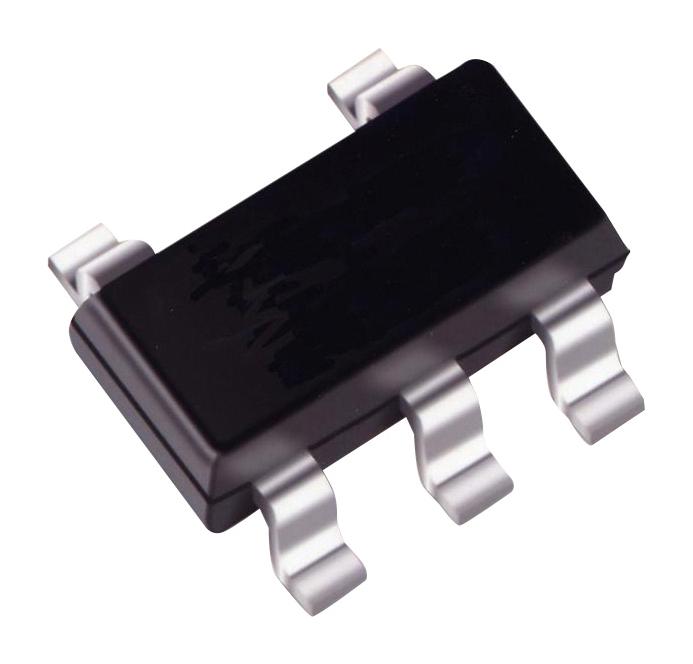

DIODES INC. 74LVC1G86QW57 Logic Gate
The 74LVC1G86Q is an automotive-compliant, single 2-input positive XOR gate with a push-pull output, operating from 1.65V to 5.5V. Designed for mixed voltage environments, it supports partial power down mode, preventing damaging current flow when powered off. Suitable for automotive, industrial, and automation applications, it features ESD protection exceeding 2000V human body model, low power consumption, and high reliability. The device's robust construction and wide temperature range make it ideal for high-reliability networking and control systems.
DIODES INC. 74LVC1G86QW57 Logic Gate Specifications:
- Supply Voltage Range: 1.65V to 5.5V
- Input Voltage Tolerance: Up to 5.5V
- Output Drive: 24mA at 3.3V
- Operating Temperature Range: -40°C to +125°C
- ESD Protection: >2000V Human Body Model, >1000V Charged Device Model
- Thermal Resistance (Junction-to-Ambient): 385°C/W (SOT353), 184°C/W (SOT25)
- Package Options: SOT25, SOT353
- Power Dissipation Capacitance: 18pF at 10MHz
- Input Clamp Current: -50mA
- Continuous Output Current: ±50mA
- Storage Temperature: -65°C to +150°C
- Lead Finish: Matte Tin Plated Leads
- Moisture Sensitivity: Level 1 (J-STD-020)
Buy the Diodes 74LVC1G86Q – Reliable XOR Gate for Industrial Applications
Order Diodes 74LVC1G86Q online now to benefit from its robust automotive-grade design, supporting wide voltage ranges up to 5.5V, high ESD protection exceeding 2000V, and operation across -40°C to +125°C. Perfect for industrial automation, high-reliability networking, and automotive applications, this single 2-input XOR gate ensures precise signals, low power consumption, and durability. Purchase today for quality, reliability, and seamless integration into your control and electronic systems.
Get Diodes 74LVC1G86Q today—designed for automotive, industrial and automation systems, offering high reliability, wide voltage range, and power efficiency.
Frequently Asked Questions
Where can I buy DIODES INC. 74LVC1G86QW57?
You can click on the BUY or RFQ button to purchase 74LVC1G86QW57 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part 74LVC1G86QW57?
You can download the 74LVC1G86QW57 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of 74LVC1G86QW57?
DIODES INC.
