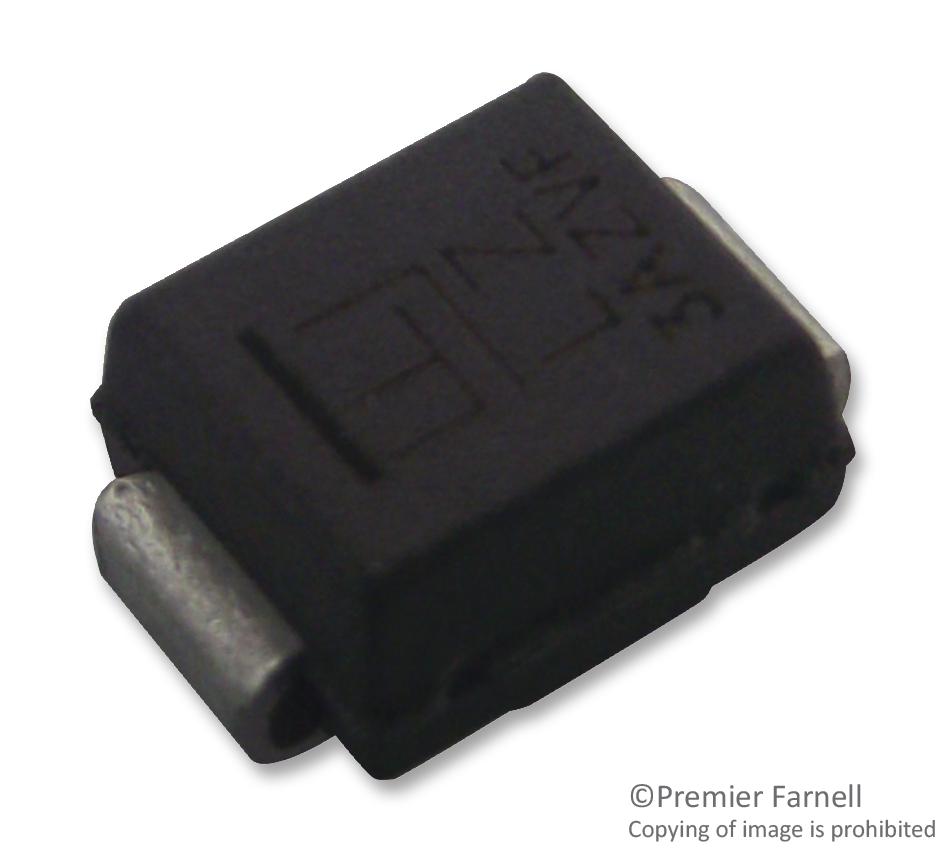

DIODES INC. S1MB13F Surface Mount Rectifier
The 1.0A Surface Mount Glass Passivated Rectifier offers high-reliability silicon construction with moldable plastic case for efficient surface-mount installation. This device features a surge overload rating of 30A, is RoHS compliant, halogen and antimony free, and designed for automated assembly with UL flammability classification 94V-0. It features lead-free termination, a polarity indicator, and is suitable for applications requiring rectification, surge handling, or power conversion with robust thermal and electrical performance, operating at temperatures from -55°C to +150°C. Available in SMA and SMB packages, it provides excellent thermal resistance and high reliability in various electronic circuits.
DIODES INC. S1MB13F Surface Mount Rectifier Specifications:
- Maximum Ratings: Working Peak Reverse Voltage 50V to 1000V, Non-Repetitive Peak Forward Surge Current 30A, Average Rectified Current 1A, Operating Temperature Range -55°C to +150°C
- Electrical Characteristics: Forward Voltage at 1A, Reverse Leakage Current at 25°C, Thermal Resistance Junction to Terminal 30°C/W
- Mechanical Data: Case: SMA or SMB, Dimensions: SMA - A: 2.29-2.92mm, B: 4.00-4.60mm; SMB - A: 3.30-3.94mm, B: 4.06-4.57mm; Weight: SMA - 0.064g, SMB - 0.093g
- Physical & Construction: Glass passivated die, Molded plastic case, lead-free matte tin finish terminals, Case flammability rated UL 94V-0
- Additional Features: Surge overload rating to 30A, RoHS compliant, Halogen- and Antimony-free, moisture sensitivity Level 1, polarity indicated by cathode band/notch
Buy the Buy Diodes Rectifier Part Number S1MB13F Online
Order the Diodes surface mount rectifier S1MB13F online today to ensure seamless integration into your power circuits. With high surge capability of 30A, RoHS compliance, and robust construction, this device guarantees dependable performance and long-term service life in various applications. Its compact SMA/SMB packages simplify installation and reduce space requirements, making it ideal for automated assembly in power supply units, converters, and rectification tasks. Purchase now for reliable, efficient, and environmentally friendly circuit solutions.
Buy Diodes S1MB13F now and experience unmatched reliability and high surge current capacity in your electronic applications.
Frequently Asked Questions
Where can I buy DIODES INC. S1MB13F?
You can click on the BUY or RFQ button to purchase S1MB13F from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part S1MB13F?
You can download the S1MB13F datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of S1MB13F?
DIODES INC.
