DIODES INC. AH3231QW7 Automotive Hall Sensor
The AH3231QW7 is a high-voltage, high-sensitivity two-wire Hall effect switch designed for automotive position and proximity sensing applications. It features a unipolar/latch architecture, operation over a supply range of 2.7V to 27V, and automotive-qualified AEC-Q100 compliance. The device employs a chopper-stabilized design, internal 2-bandgap regulator, reverse blocking diode, thermal protection, UVLO protection, and high ESD ratings. Suitable for detecting seat positions, seatbelt buckles, wiper, door, and gear position sensors in automotive systems, it offers robust operation from -40°C to +150°C, with built-in protection features ensuring durability and reliable performance.
DIODES INC. AH3231QW7 Automotive Hall Sensor Specifications:
- Supply Voltage Range: 2.7V to 27V
- Maximum Junction Temperature: 180°C
- Operating Temperature Range: -40°C to +150°C
- Thermal Resistance (SC59): 268 °C/W
- Thermal Resistance (SIP-3): 143 °C/W
- ESD Rating: HBM = 8kV, CDM = 1kV
- Maximum Vp: 32 V
- Reverse Voltage: -32 V
- Magnetic Flux Density: Unlimited Gauss
- Switching Frequency: up to 50 kHz
- Response Delay Time: up to 7 μs
- Output Polarity: Unipolar / Latch
- Protection Features: Reverse blocking diode, thermal shutdown, UVLO
- Package Types: SC59 (Type A1), SIP-3 (Ammo/Bulk Pack)
- Dimensions (SC59): approximately 1.45 mm x 0.95 mm x 1.90 mm
- Compliance: Fully RoHS, Halogen- and Antimony-Free

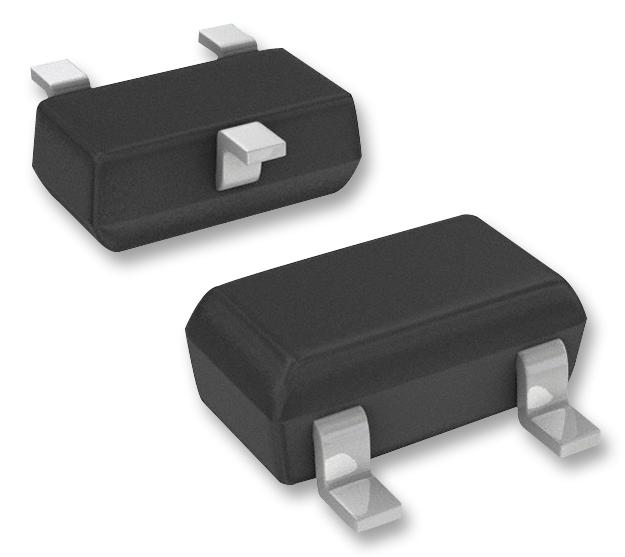

Buy the Buy Diodes Automotive Hall Effect Switch Part Number AH3231QW7 Online
Purchase the Diodes automotive high-voltage Hall effect switch AH3231QW7 online today for robust, accurate position sensing in automotive systems. This high-sensitivity unipolar/latch device operates across a wide supply voltage range, ensuring reliable performance in safety-critical applications like seat and gear position detection, wipers, and door sensors. With excellent temperature stability, built-in protection features, and compliance with automotive standards, it guarantees durability and faultless operation under demanding conditions. Get your AH3231QW7 now and enhance your automotive sensing solutions effortlessly.
Order your Diodes series AH3231QW7 automotive Hall effect sensor today and equip your vehicle with reliable position and proximity detection.
Frequently Asked Questions
Where can I buy DIODES INC. AH3231QW7?
You can click on the BUY or RFQ button to purchase AH3231QW7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part AH3231QW7?
You can download the AH3231QW7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of AH3231QW7?
DIODES INC.
