DIODES INC. AP43771FBZ13 USB Power Delivery Controller
The AP43771 is a high-integration, lead-free USB Type-C power delivery controller suitable for adapters and chargers. It supports USB PD Rev3.0 V1.2 and Qualcomm QC4/QC4+ protocols, including PPS support with 20mV/step voltage and 50mA/step current resolution. The device features cable-loss compensation, SOP’ command for e-Marker detection, and comprehensive protection functions like OVP, OCP, SCP, and OTP. It supports external N-MOSFET control, supports USB PD 3.0 PPS compliance, and is RoHS, halogen, and antimony-free, making it environmentally friendly and ideal for consumer and automotive applications requiring robust power management.
DIODES INC. AP43771FBZ13 USB Power Delivery Controller Specifications:
- Operating Voltage Range: 3.3V to 16V
- Compatible with USB PD Rev3.0 V1.2, Qualcomm QC4/4+ Protocol
- Supports PPS APDO with 20mV/step voltage resolution and 50mA/step current resolution
- Built-in protection: OVP, OCP, SCP, OTP, UVP, OVF
- External N-MOSFET control for VBUS power delivery
- Supports cable-loss compensation and SOP’ command for e-Marker detection
- Package: W-DFN3030-14 (Type A1), lead-free, RoHS, halogen and antimony-free
- Supports system configuration via MTP, with main firmware in OTP ROM
- Designed for USB Type-C adapters, chargers, and USB PD converters
- Certified for USB PD 3.0 PPS compliance (TID 1090028)
- Temperature Range: -40°C to +85°C
- Junction Temperature: Max +150°C
- ESD Protection up to 2kV (HBM), 750V (Charged Device Model)
- Soldering temperature: +300°C for 10s

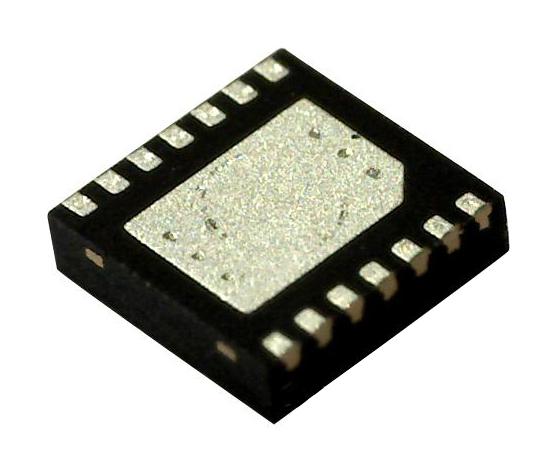

Buy the Diodes Series AP43771 USB PD Controller: AP43771FBZ13
Purchase the Diodes AP43771FBZ13 online and enhance your power delivery solutions. Designed for robustness and efficiency, this controller supports USB PD 3.0 PPS, offers extensive protection features, and is RoHS compliant. Its integrated design reduces BOM cost, making it suitable for chargers, adapters, and USB PD converters. Enjoy reliable performance with dedicated cable-loss compensation and e-Marker detection. Secure your supply chain with certified, eco-friendly power management technology that guarantees safe, consistent operation in consumer electronics and automotive applications.
Get Diodes AP43771FBZ13 today—built for precision, high efficiency, and long-lasting durability in USB Type-C power delivery applications.
Frequently Asked Questions
Where can I buy DIODES INC. AP43771FBZ13?
You can click on the BUY or RFQ button to purchase AP43771FBZ13 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part AP43771FBZ13?
You can download the AP43771FBZ13 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of AP43771FBZ13?
DIODES INC.
