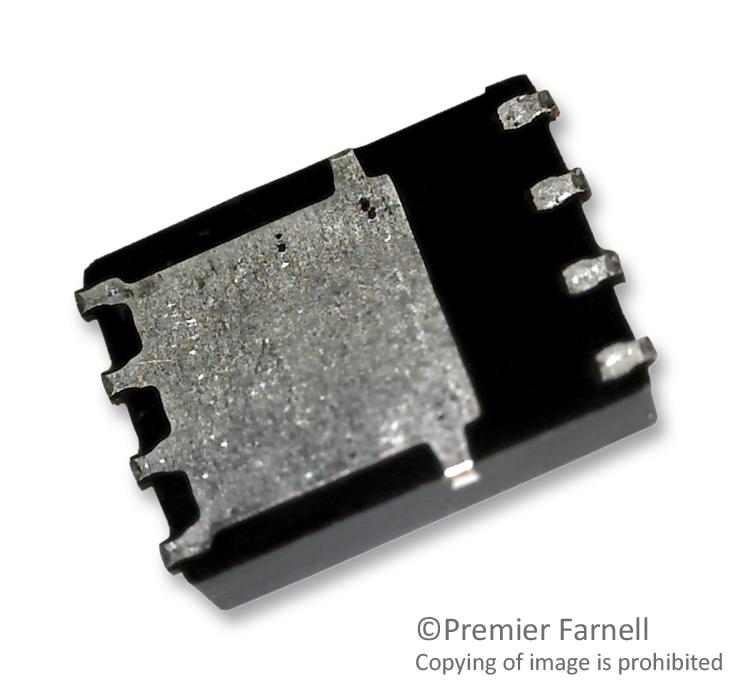

DIODES INC. DMT69M5LFVW7 60V N-channel MOSFET
This high-efficiency N-channel enhancement mode MOSFET is designed with low on-resistance and superior switching performance, ideal for power management, backlighting, and DC-DC converter applications. Fully lead-free and ROHS compliant, it features a small, thermally efficient package, robust UL V-0 flammability rating, and optimized for automotive reliability with AEC-Q100/101/200 qualification. Ensuring durability and safety, it offers high pulsed current capacity, low gate charge, and excellent thermal characteristics for demanding electronic systems.
DIODES INC. DMT69M5LFVW7 60V N-channel MOSFET Specifications:
- Drain-Source Voltage: 60 V
- Gate-Source Voltage: ±20 V
- Continuous Drain Current: 14.8 A at 25°C, 119 A pulsed
- Pulsed Drain Current: 160 A
- Total Power Dissipation: 2.74 W
- Thermal Resistance, Junction to Ambient: 45.6°C/W
- Total Power Dissipation (at 25°C): 20.5 W
- Thermal Resistance, Junction to Case: 6.1°C/W
- Operating Temperature Range: -55°C to +150°C
- Drain-Source Breakdown Voltage: 60 V
- Gate Threshold Voltage: 1.4V to 2.5V
- R<sub>on</sub>: 8.3 mΩ at 10 V
- Body Diode Forward Voltage: 0.8 V
- Gate Capacitance (Ciss): 1406 pF, Reverse Capacitance (Crss): 52 pF
- Gate Resistance: 1.85 Ω
- Gate Charge (V<sub>gs</sub>=10V): 28.4 nC
- Body Diode Reverse Recovery Time: 26.7 ns
- Encapsulated in PowerDI®3333-8 (SWP) package, RoHS and lead-free compliant, UL V-0 rated, compact and thermally efficient for high-density designs
Buy the Buy Diodes DMT69M5LFVW Part Number DMT69M5LFVW Online
Purchase the Diodes DMT69M5LFVW online today to enhance your power management systems with a high-efficiency, low on-resistance MOSFET. Perfect for DC-DC converters, backlighting, and automotive applications, this lead-free device ensures superior switching performance, excellent thermal characteristics, and compact packaging for dense electronic assemblies. Its robust construction and RoHS compliance make it ideal for demanding environments, providing reliable operation, safety, and longevity in high-current, high-voltage applications. Secure your supply now for optimal system performance.
Buy Diodes DMT69M5LFVW now and experience unmatched reliability, low on-resistance, and efficient power management in your electronic designs.
Frequently Asked Questions
Where can I buy DIODES INC. DMT69M5LFVW7?
You can click on the BUY or RFQ button to purchase DMT69M5LFVW7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part DMT69M5LFVW7?
You can download the DMT69M5LFVW7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of DMT69M5LFVW7?
DIODES INC.
