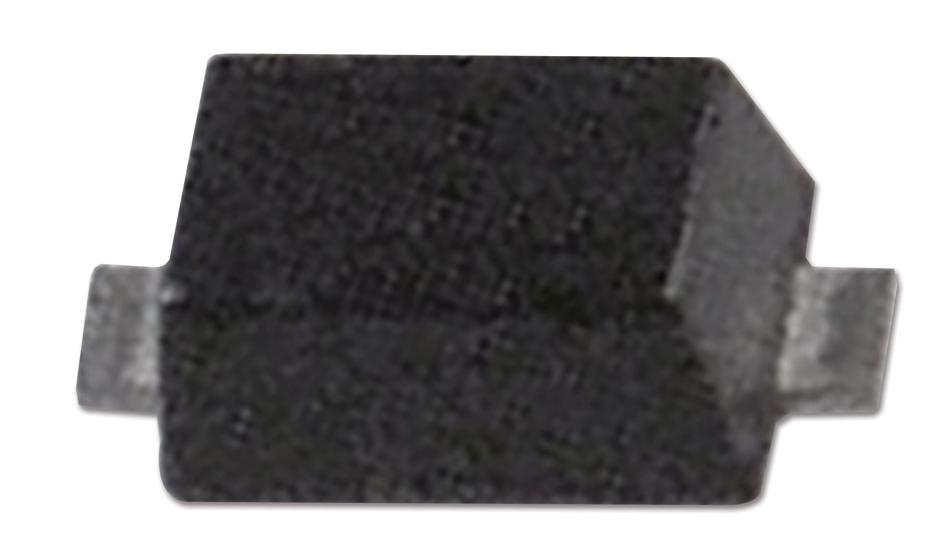

DIODES INC. D5V0L1B2T7 Bidirectional TVS Diode
The D5V0L1B2T-7 is a lead-free, RoHS-compliant bidirectional TVS diode designed for ESD protection in cellular handsets, portable electronics, communication systems, and peripherals. It features extremely low capacitance (<0.5pF), providing effective ESD protection per IEC 61000-4-2 standards with air discharges up to 30kV and contact up to 30kV. Packaged in a compact SOD523 form factor with tin-plated terminals, it ensures long-lasting reliability and meets UL 94V-0 flammability ratings. Its robust construction makes it ideal for sensitive electronic devices requiring precise ESD suppression and high durability.
DIODES INC. D5V0L1B2T7 Bidirectional TVS Diode Specifications:
- Case: SOD523
- Material: Molded Plastic, 'Green' Molding Compound
- UL Flammability Rating: 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
- Power Dissipation: 275W
- Peak Pulse Power (t=8us): 100W
- Peak Pulse Current: 10A
- ESD Protection: Air +30kV, Contact +30kV
- Reverse Standoff Voltage: 5V
- Channel Leakage Current: 10-100nA at 5V
- Clamping Voltage: 12-14V at specified transient
- Breakdown Voltage: 6-8V at 1mA
- Channel Input Capacitance: 15-20pF at 0V, 1MHz
- Dimensions: A 0.25-0.35mm, B 0.70-0.90mm, C 1.50-1.70mm, H 1.10-1.30mm, K 0.55-0.65mm, L 0.10-0.30mm, M 0.10-0.12mm
- Package: SOD523
- Operating Temperature Range: -65°C to +150°C
- Certification: Fully RoHS and EU RoHS compliant, Halogen- and Antimony-free
Buy the Diodes Series D5V0L1B2T-7 Low Capacitance Bidirectional TVS Diode
Order the Diodes Series D5V0L1B2T-7 bidirectional TVS diode online today. Designed for high durability, it provides efficient ESD protection with extremely low capacitance, making it ideal for cellular handsets, communication systems, and portable electronics. Packaged in the compact SOD523 package with lead-free terminals, it ensures long-lasting performance and compliance with environmental standards. Perfect for safeguarding sensitive circuits against electrostatic discharges, ensuring your devices remain reliable and protected in various operating conditions.
Get Diodes Series D5V0L1B2T-7 today—built for precision, offering reliable ESD protection for sensitive electronic components in portable devices.
Frequently Asked Questions
Where can I buy DIODES INC. D5V0L1B2T7?
You can click on the BUY or RFQ button to purchase D5V0L1B2T7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part D5V0L1B2T7?
You can download the D5V0L1B2T7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of D5V0L1B2T7?
DIODES INC.
