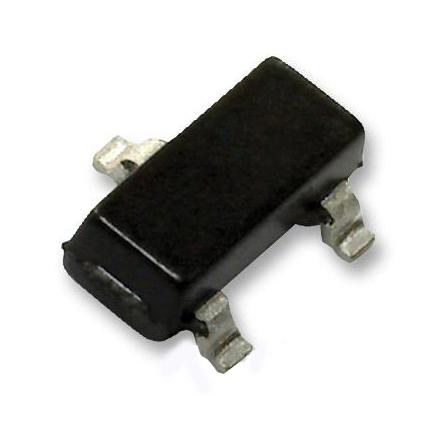

DIODES INC. D5V0L2B3W7 ESD Protection Array
This low capacitance bi-directional TVS array provides robust ESD protection suitable for portable electronics, cellular handsets, and communication systems. Featuring air and contact discharge protection up to ±30kV, the devices are lead-free, RoHS compliant, and housed in a compact SOT323 package with moldable plastic. They support fast response times, low channel input capacitance, and are rated for maximum peak pulse power of 84W. These arrays ensure reliable transient voltage suppression, making them ideal for sensitive electronic interfaces requiring compact, durable, and eco-friendly solutions.
DIODES INC. D5V0L2B3W7 ESD Protection Array Specifications:
- Case: SOT323
- Case Material: Molded Plastic, 'Green' Molding Compound
- UL Flammability Classification: 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
- Lead-Free: Yes
- Maximum Peak Pulse Power Dissipation: 84 W
- Peak Pulse Current: 6 A
- ESD Protection Contact Discharge: +30 kV
- ESD Protection Air Discharge: +30 kV
- Reverse Working Voltage: 5.0 V
- Breakdown Voltage: 6.7 to 8 V
- Reverse Leakage Current: 10 to 100 μA at 5 V
- Channel Input Capacitance: 15 to 20 pF
- Temperature Range: -65°C to +150°C
- Junction to Ambient Thermal Resistance: 625 K/W
- Device Dimensions (approximate): A 0.25-0.40 mm, B 1.15-1.35 mm, c 2.00-2.20 mm, H 1.80-2.20 mm.
Buy the Diodes TVS Array – Reliable ESD Protection for Industrial Applications
Secure your electronic devices with the Diodes D5V0L2B3W low capacitance bi-directional TVS array, designed for robust ESD protection in portable electronics, cellular phones, and communication systems. Its compact SOT323 case, RoHS compliance, and high peak pulse power make it ideal for protecting sensitive components against transient voltage spikes. Easy to install and highly reliable, this array ensures long-term durability, safety, and compliance with international standards, making it an essential component for modern electronic designs. Buy online now for superior transient voltage suppression.
Get Diodes D5V0L2B3W today—built for precision and long-lasting durability in transient voltage suppression.
