DIODES INC. ES2G13F Super-Fast Rectifier Diode
The ES2G-13-F is a green, surface-mount super-fast rectifier diode built with glass passivated die construction and molded plastic case. It features a surge overload rating of 50A, a peak repetitive reverse voltage of 400V, and an RMS reverse voltage of 280V. Designed for high efficiency and automated assembly, it has a low forward voltage of 1.25V at 2.0A, and a low reverse leakage current of 5.0μA. The diode operates across temperatures from -55°C to +150°C, with a maximum junction temperature of 150°C, suitable for various power rectification applications.
DIODES INC. ES2G13F Super-Fast Rectifier Diode Specifications:
- Peak Repetitive Reverse Voltage: 400V
- Working Peak Reverse Voltage: 400V
- RMS Reverse Voltage: 280V
- Average Rectified Output Current: 2.0A at 110°C
- Peak Forward Surge Current: 50A for 8.3ms
- Operating Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction to Terminal: 20°C/W
- Forward Voltage: 1.25V at 2.0A
- Recovery Time: Fast Recovery
- Case: SMB, Molded Plastic
- Lead Finish: Matte Tin
- Flammability Classification: UL 94V-0
- Moisture Sensitivity: Level 1
- Polarity Indication: Cathode Band or Notch
- Dimensions (mm): A 3.30-3.94, B 4.06-4.57, C 1.96-2.21, D 0.15-0.31, E 5.00-5.59, G 0.05-0.20, H 0.76-1.52, J 2.00-2.50

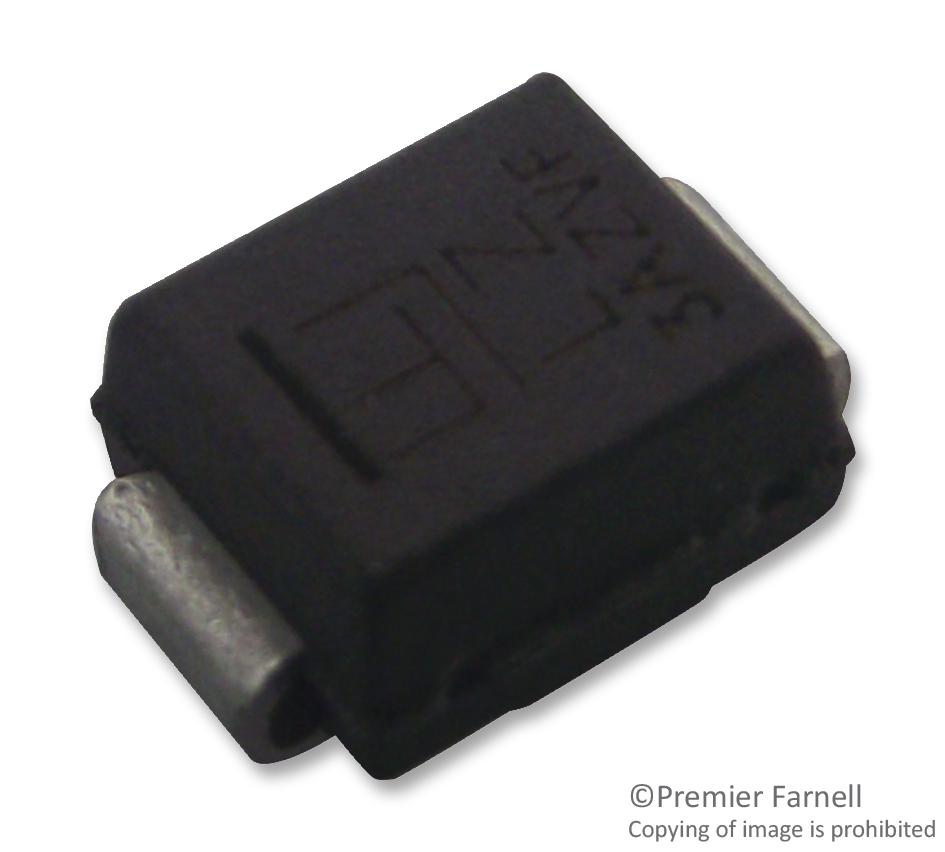

Buy the Buy Diodes Super-Fast Rectifier Part Number ES2G13F Online
Order the Diodes ES2G13F super-fast surface-mount rectifier diode online for high efficiency power rectification. With a 400V reverse voltage, 2A current capacity, and fast recovery time, this component is ideal for automated assembly and high-performance electronic applications. Its compact SMB package, low forward voltage of 1.25V, and robust surge overload rating of 50A make it suitable for demanding power supplies and rectification tasks. Easy to solder with lead-free finish and meets RoHS standards, ensuring compliance and environmental safety.
Get Diodes ES2G13F today—built for high efficiency, fast recovery, and reliable power rectification in automated and demanding circuits.
Frequently Asked Questions
Where can I buy DIODES INC. ES2G13F?
You can click on the BUY or RFQ button to purchase ES2G13F from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part ES2G13F?
You can download the ES2G13F datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of ES2G13F?
DIODES INC.
