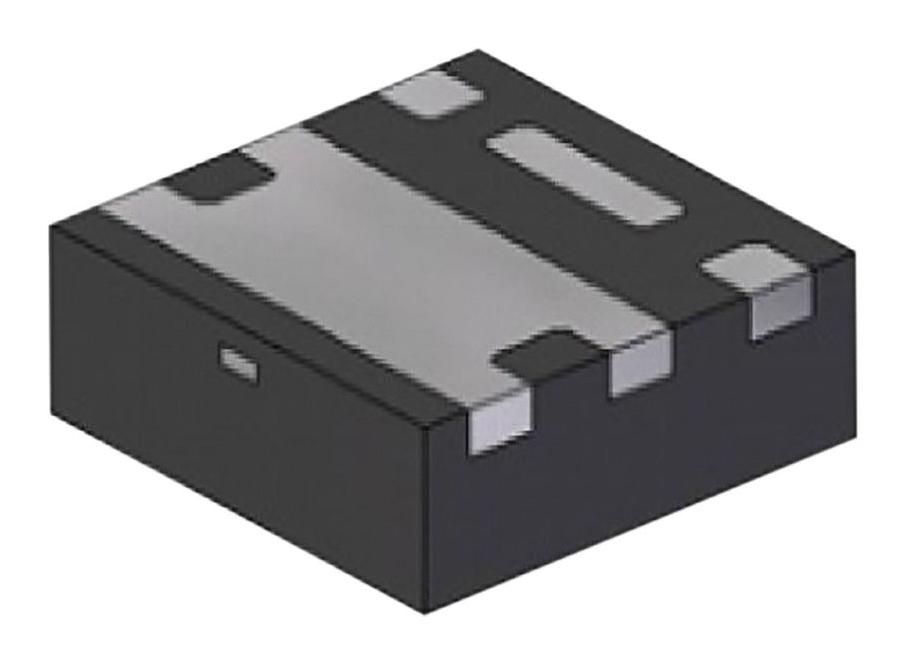

DIODES INC. DMN2011UFDE7 Low-Resistance Power MOSFET
This next-generation lead-free N-channel enhancement mode MOSFET offers low on-resistance and high switching performance, ideal for efficient power management and LED lighting in industrial electronics. It features a compact U-DFN2020-6 package, ESD protection, and is fully RoHS compliant, halogen-free, and suitable for high-reliability applications such as power switches, general electronic interfacing, and motor control systems. The device's low gate threshold voltage and miniature profile make it optimal for space-constrained designs requiring robust power handling and low voltage operation.
DIODES INC. DMN2011UFDE7 Low-Resistance Power MOSFET Specifications:
- Drain-Source Voltage: 20 V
- Gate-Source Voltage: +2 V
- Continuous Drain Current: 11.7A at 25°C, 9.3A at 70°C
- Pulsed Drain Current: 80A
- Max Body Diode Continuous Current: 25A
- Avalanche Current: 18A
- Power Dissipation: 137W at 25°C ambient, 390W junction to case
- Thermal Resistance, Junction to Ambient: 98°C/W
- Operating Temperature Range: -55°C to +150°C
- Case: U-DFN2020-6, Molded Plastic with Lead-Free Nickel-Palladium-Gold Finish
- Features include low gate threshold, low on-resistance, ESD protected gate, fully RoHS compliant, halogen and antimony free, AEC-Q101 qualified, ultra-compact profile (0.6mm height), PCB footprint of 4mm².
Buy the Diodes DMN2011UFDE – Reliable Low-Resistance Power MOSFET for Industrial Applications
Discover the high-performance power switching capabilities of this lead-free N-channel MOSFET, ideal for industrial automation, power management, and LED lighting. Its compact U-DFN2020-6 package, combined with low on-resistance and excellent thermal performance, ensures efficient operation in space-constrained environments. Fully RoHS, halogen-free, and AEC-Q101 qualified, making it suitable for demanding high-reliability applications. Purchase online today to enhance your power electronic designs with this industry-leading component, delivering excellent durability and efficiency for your projects.
Buy Diodes DMN2011UFDE now and experience unmatched reliability and high efficiency for industrial power management and compact electronics.
Frequently Asked Questions
Where can I buy DIODES INC. DMN2011UFDE7?
You can click on the BUY or RFQ button to purchase DMN2011UFDE7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part DMN2011UFDE7?
You can download the DMN2011UFDE7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of DMN2011UFDE7?
DIODES INC.
