DIODES INC. SMAJ60A13F Transient Voltage Suppressor
The SMAJ60A13F is a surface-mounted transient voltage suppressor with a peak pulse power dissipation of 400W, designed to protect electronic circuits from voltage spikes. Constructed with a molded plastic case and glass passivated die, it is UL 94V-0 rated, halogen and antimony-free, and ROHS compliant. The device is available in bidirectional and unidirectional versions, with lead-free matte tin-plated terminals, and features fast response time and excellent clamping capability. Suitable for automotive and electronic circuit protection, it provides reliable transient suppression in a compact package.
DIODES INC. SMAJ60A13F Transient Voltage Suppressor Specifications:
- Peak Pulse Power Dissipation: 400W
- Case Material: Molded Plastic
- Terminal Finish: Lead-Free Matte Tin
- UL Flammability Rating: 94V-0
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Peak Forward Surge Current: 40A
- Maximum Reverse Breakdown Voltage: 5.0V to 200V (varies by model)
- Peak Pulse Current: 1.0A
- Operating Voltage Range: 5.0V to 200V
- Weight: approximately 0.064 grams
- Moisture Sensitivity Level: Level 1
- Polarity Indicator: Cathode Band (bi-directional devices do not have a polarity indicator)

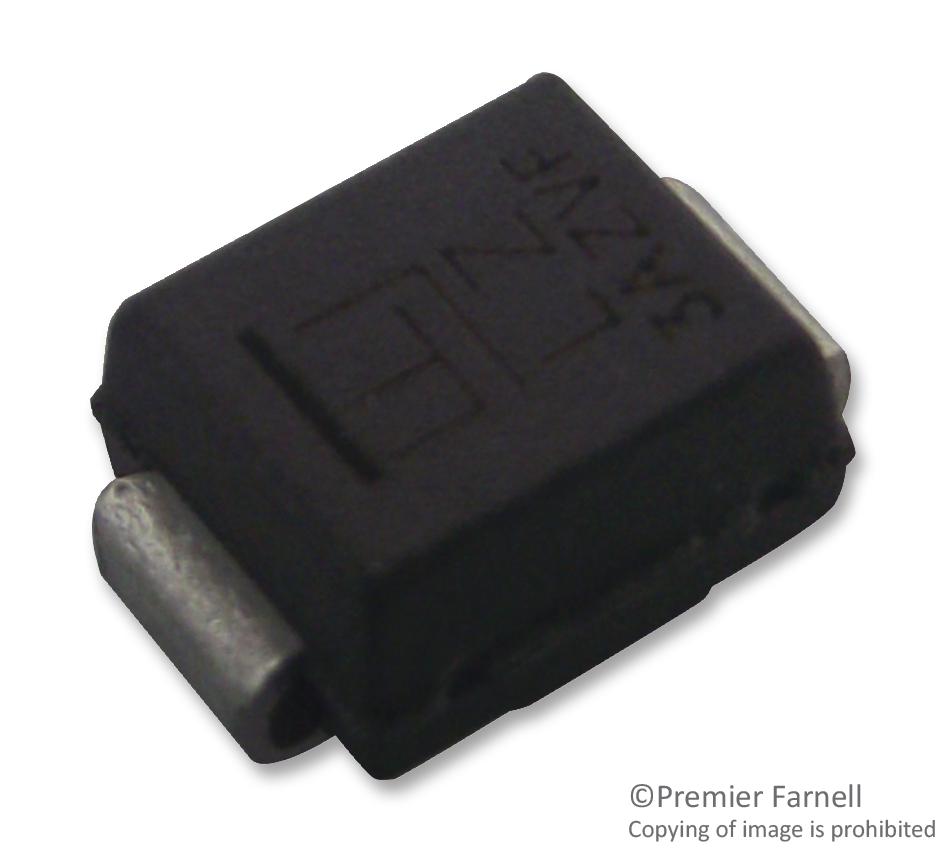

Buy the Diodes Series SMA SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR: SMAJ60A13F
Purchase the Diodes Series SMAJ60A13F transient voltage suppressor online today and safeguard your electronic circuits from voltage surges. This compact, high-performance TVS diode features 400W peak pulse power, fast response time, and RoHS compliance. Its molded plastic case and lead-free terminals make it ideal for automotive, industrial, and electronics applications. With excellent clamping capability and a wide operating temperature range, it offers reliable protection, ensuring long-term device durability and performance. Order now to secure fast delivery and competitive pricing.
Order your Diodes Series SMAJ60A13F transient voltage suppressor today and ensure reliable circuit protection with premium quality surface mount devices.
Frequently Asked Questions
Where can I buy DIODES INC. SMAJ60A13F?
You can click on the BUY or RFQ button to purchase SMAJ60A13F from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part SMAJ60A13F?
You can download the SMAJ60A13F datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of SMAJ60A13F?
DIODES INC.
