DIODES INC. DMN3009LFVWQ7 power MOSFET
The DMN3009LFVWQ is a 30V N-channel enhancement mode MOSFET designed for automotive and power management applications. It features low Rds(on) for efficient conduction, is fully compliant with RoHS and halogen-free standards, and supports high-current switching up to 60A continuous and 90A pulsed. Its PowerDI® 3333-8 package offers a compact, thermally efficient design suitable for high-density end products. This MOSFET is qualified under AEC-Q101, making it ideal for reliable, automotive-grade electronic systems, including DC-DC converters and power supplies, with robust avalanche and switching characteristics.
DIODES INC. DMN3009LFVWQ7 power MOSFET Specifications:
- Drain-Source Voltage: 30 V
- Gate-Source Voltage: ±20 V
- Continuous Drain Current: 3 A
- Pulsed Drain Current: 90 A
- Maximum Continuous Body Diode Forward Current: 60 A
- Pulsed Body Diode Forward Current: 90 A
- Avalanche Current: 33 A
- Avalanche Energy: 58 mJ
- Junction-to-Ambient Resistance: 62 °C/W
- Total Power Dissipation: 1.0 W at Tj=25°C
- Drain-Source On-Resistance (Vgs=10V): 4.5 mΩ
- Gate Charge (Qg): 47 nC
- Gate-Drain Charge (Qgd): 7.4 nC
- Gate Threshold Voltage: 2.0 V typical
- Body Diode Forward Voltage: 0.55 V at 15A
- Operating Junction Temperature Range: -55°C to +150°C
- Package: PowerDI 3333-8, molded plastic, RoHS, halogen-free
- Moisture Sensitivity Level: 1

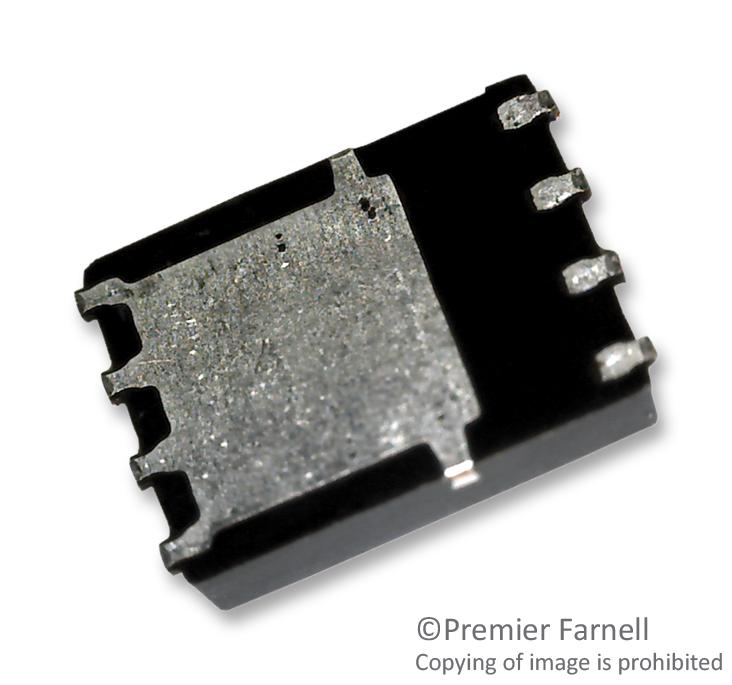

Buy the Buy Diodes DMN3009LFVWQ Series 30V N-channel MOSFET Part Number DMN3009LFVWQ Online
Enhance your electronic projects with the high-quality DMN3009LFVWQ, a 30V N-channel enhancement mode MOSFET. Its low Rds(on) and high current capacity deliver efficient switching, making it perfect for automotive power management and high-density applications. Fully compliant with RoHS and halogen-free standards, this device is built for reliability in demanding environments. Qualified under AEC-Q101, it supports robust automotive-grade operation with excellent avalanche, switching, and thermal characteristics. Order online now for fast delivery and confident integration into your power solutions.
Order your Diodes DMN3009LFVWQ 30V N-channel MOSFET today and ensure reliable automotive-grade power switching for your high-density electronic applications.
Frequently Asked Questions
Where can I buy DIODES INC. DMN3009LFVWQ7?
You can click on the BUY or RFQ button to purchase DMN3009LFVWQ7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part DMN3009LFVWQ7?
You can download the DMN3009LFVWQ7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of DMN3009LFVWQ7?
DIODES INC.
