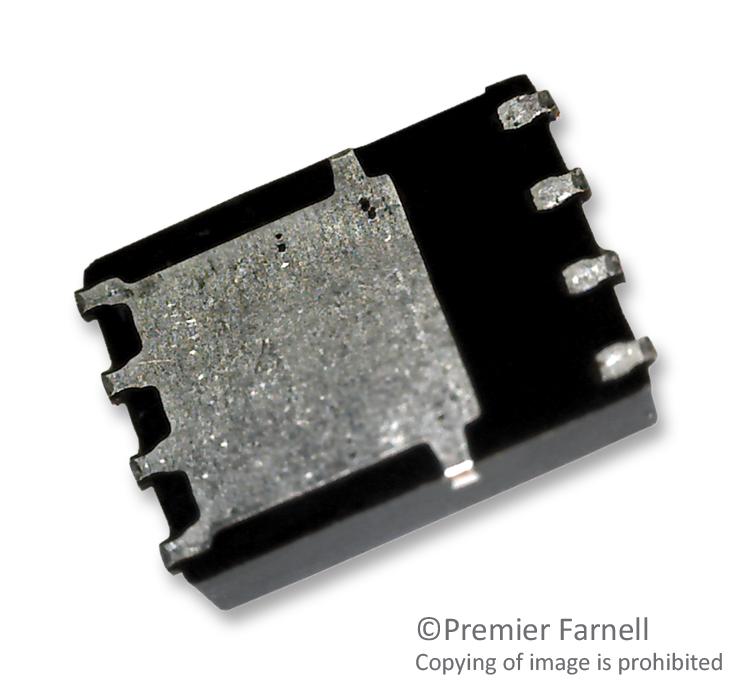

DIODES INC. DMT35M4LFVW7 Power MOSFET
This lead-free, green 30V N-channel enhancement mode MOSFET is designed for high-efficiency power management and automotive applications. Featuring low on-state resistance, small form factor, and robust switching performance, it ensures reliable operation in a compact package. Fully RoHS and halogen-free, the MOSFET is qualified for automotive standards and suitable for power management functions and analog switches, delivering high current capabilities, excellent thermal performance, and compliance with industry quality protocols.
DIODES INC. DMT35M4LFVW7 Power MOSFET Specifications:
- Drain-Source Voltage: 30 V
- Gate-Source Voltage: ±20 V
- Continuous Drain Current at 25°C: 60 A
- Drain Current at 70°C: 48 A
- Pulsed Drain Current (380us pulse): 110 A
- Maximum Body Diode Forward Current: 23 A
- Avalanche Current (L = 0.1mH): 22 A
- Avalanche Energy: 25 mJ
- Total Power Dissipation: 15 W
- Thermal Resistance, Junction to Ambient: 83.3°C/W (steady state), 55°C/W (with heat sink)
- Operating Temperature Range: -55°C to +150°C
- Package: PowerDI®3333-8 Molded Plastic, UL 94V-0 flammability rated
- Lead Finish: Matte Tin over Copper Leadframe
- Moisture Sensitivity Level: Level 1 (J-STD-020)
- Product weight: 0.03 grams
- Case Dimensions: Length approximately between 0.75 mm and 0.85 mm, width around 0.25-0.40 mm, height approximately 3.20-3.40 mm
- RoHS and halogen-free, compliant with industry standards, suitable for automotive applications and high-density power systems
Buy the Buy Diodes Innovative MOSFET Part Number DMT35M4LFVW Online
Enhance your power management systems with the green, lead-free 30V N-channel MOSFET. Designed for automotive and high-efficiency switching applications, it offers low on-resistance, high current capacity, and excellent thermal performance in a compact package. Fully RoHS and halogen-free, this state-of-the-art device ensures compliance with industry standards and delivers reliable switching, minimizing losses and maximizing system efficiency. Purchase online today to benefit from fast delivery, trusted quality, and improved power handling in your next project.
Buy Diodes DMT35M4LFVW now and experience unmatched reliability and performance with high current handling and thermal efficiency.
Frequently Asked Questions
Where can I buy DIODES INC. DMT35M4LFVW7?
You can click on the BUY or RFQ button to purchase DMT35M4LFVW7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part DMT35M4LFVW7?
You can download the DMT35M4LFVW7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of DMT35M4LFVW7?
DIODES INC.
