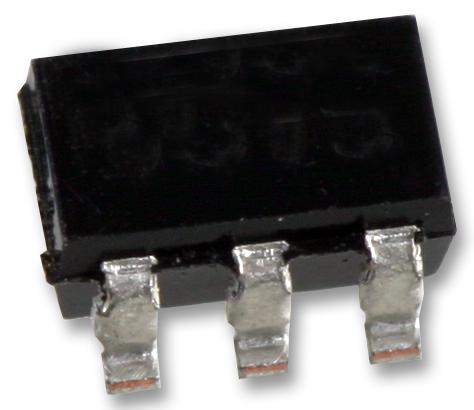

DIODES INC. AP73121833W67 Dual Low Dropout Regulator
The AP7312 is a dual fixed output voltage, low dropout linear regulator capable of delivering 150mA with ultra-low quiescent current of around 60μA. Designed for low power applications, it features low dropout voltage, fast start-up time of 60μs, high PSRR of 65dB at 1kHz, and excellent transient response. The device includes protections such as current limit, short circuit, and thermal shutdown. Available in SOT26 and DFN2018-6 packages, it supports multiple fixed voltage options for versatile electronic circuit integration.
DIODES INC. AP73121833W67 Dual Low Dropout Regulator Specifications:
- Input Voltage Range: 2V to 6V
- Output Voltage Options: 1.2V, 1.5V, 1.8V, 3.3V, 2.5V, 2.8V, 3.0V, 3.3V
- Maximum Output Current: 150mA
- Quiescent Current: approximately 60μA
- Dropout Voltage: 150mV at 150mA
- High PSRR: 65dB at 1kHz
- Fast Start-up Time: 60μs
- Thermal Shutdown Protection: Yes
- Overcurrent Protection: Current limit ~300mA, Short circuit limit ~60mA
- Packages: SOT26, DFN2018-6
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -65°C to 150°C
- Mechanical Size: SOT26 (6 pins), DFN2018-6 (6 pins)
- Regulation Accuracy: ±2%
Buy the Diodes Series AP7312 150mA Low Dropout Regulator: 1833V
Order the Diodes AP7312 1833V dual low dropout linear regulator online today. Designed for low power portable devices, it offers 150mA current capacity, ultra-low quiescent current of 60μA, and fast start-up in compact packages. Protect your circuits with overcurrent, short circuit, and thermal shutdown features. Ideal for mobile phones, smart devices, and battery-powered systems, this versatile regulator ensures stable voltage, excellent transient response, and high PSRR, making it a reliable choice for your electronic needs.
Buy Diodes AP7312 1833V now and experience unmatched reliability and performance in low power applications with fast transient response and advanced protections.
Frequently Asked Questions
Where can I buy DIODES INC. AP73121833W67?
You can click on the BUY or RFQ button to purchase AP73121833W67 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part AP73121833W67?
You can download the AP73121833W67 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of AP73121833W67?
DIODES INC.
