DIODES INC. MSB25MH13 Bridge Rectifier
The MSB25MH13 is a surface-mount glass passivated bridge rectifier rated at 1000V, designed for reliable AC to DC full-wave rectification in industrial and electronic applications. It features a compact, thin profile package, lead-free tin plating, and RoHS compliance, making it ideal for SMD manufacturing. Suitable for lighting, power adapters, battery chargers, and telecommunication equipment, it offers robust performance with a UL flammability rating of 94V-0 and moisture sensitivity level 1, ensuring safe, efficient operation in demanding environments.
DIODES INC. MSB25MH13 Bridge Rectifier Specifications:
- Peak Repetitive Reverse Voltage: 1000V
- Working Peak Reverse Voltage: 1000V
- DC Blocking Voltage: 700V
- Average Rectified Output Current: 25A at +110°C
- Non-Repetitive Peak Forward Surge Current: 80A (8.3ms), 160A (1.0ms)
- Thermal Resistance, Junction to Ambient: 35°C/W
- Thermal Resistance, Junction to Case: 78°C/W
- Thermal Resistance, Junction to Lead: 16°C/W
- Operating & Storage Temperature: -55°C to +150°C
- Forward Voltage: 0.86V at 25A, 125°C; 0.31V at 1000V, 25°C
- Leakage Current: 500μA at 1000V, 125°C
- Capacitance: 30pF at 4V, 1MHz
- Flammability Rating: UL 94V-0
- Package: Molded Plastic, Surface Mount, Dimensions approximately 14.3mm x 8.7mm
- Weight: 0.216 grams
- Moisture Sensitivity: Level 1
- Compliance: RoHS 2, Halogen-Free
- Terminals: Lead-Free Matte Tin Plated, Solderable according to MIL-STD-202
- Marking: MB25MH, Date Code YWW

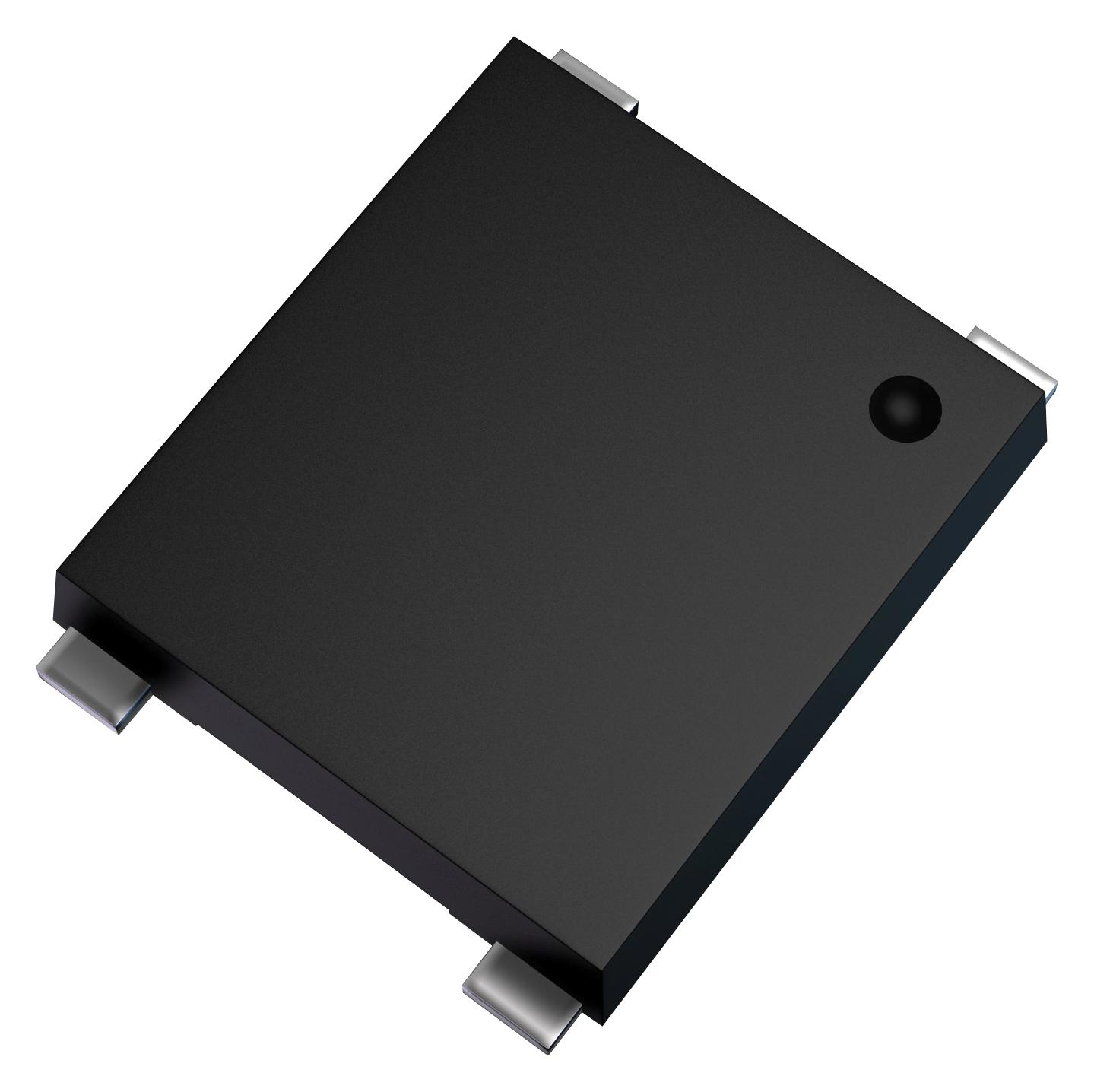

Buy the Diodes MSB25MH13 – Reliable Bridge Rectifier for Industrial Applications
Enhance your power supply designs by choosing the Diodes MSB25MH13 bridge rectifier. Built with a compact, surface-mount design and rated at 1000V and 25A, it offers high reliability for industrial, lighting, and telecommunication applications. Its RoHS-compliant, lead-free construction ensures environmental safety and easy manufacturing integration. This robust device features excellent thermal performance, UL flammability certification, and moisture resistance, making it suitable for demanding environments where safe, efficient rectification is critical. Purchase online today for fast delivery and consistent quality.
Order your Diodes SeriesMSB25MH13 today and give your projects the dependable quality they deserve, ensuring robust power conversion with high voltage and current ratings.
Frequently Asked Questions
Where can I buy DIODES INC. MSB25MH13?
You can click on the BUY or RFQ button to purchase MSB25MH13 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part MSB25MH13?
You can download the MSB25MH13 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of MSB25MH13?
DIODES INC.
