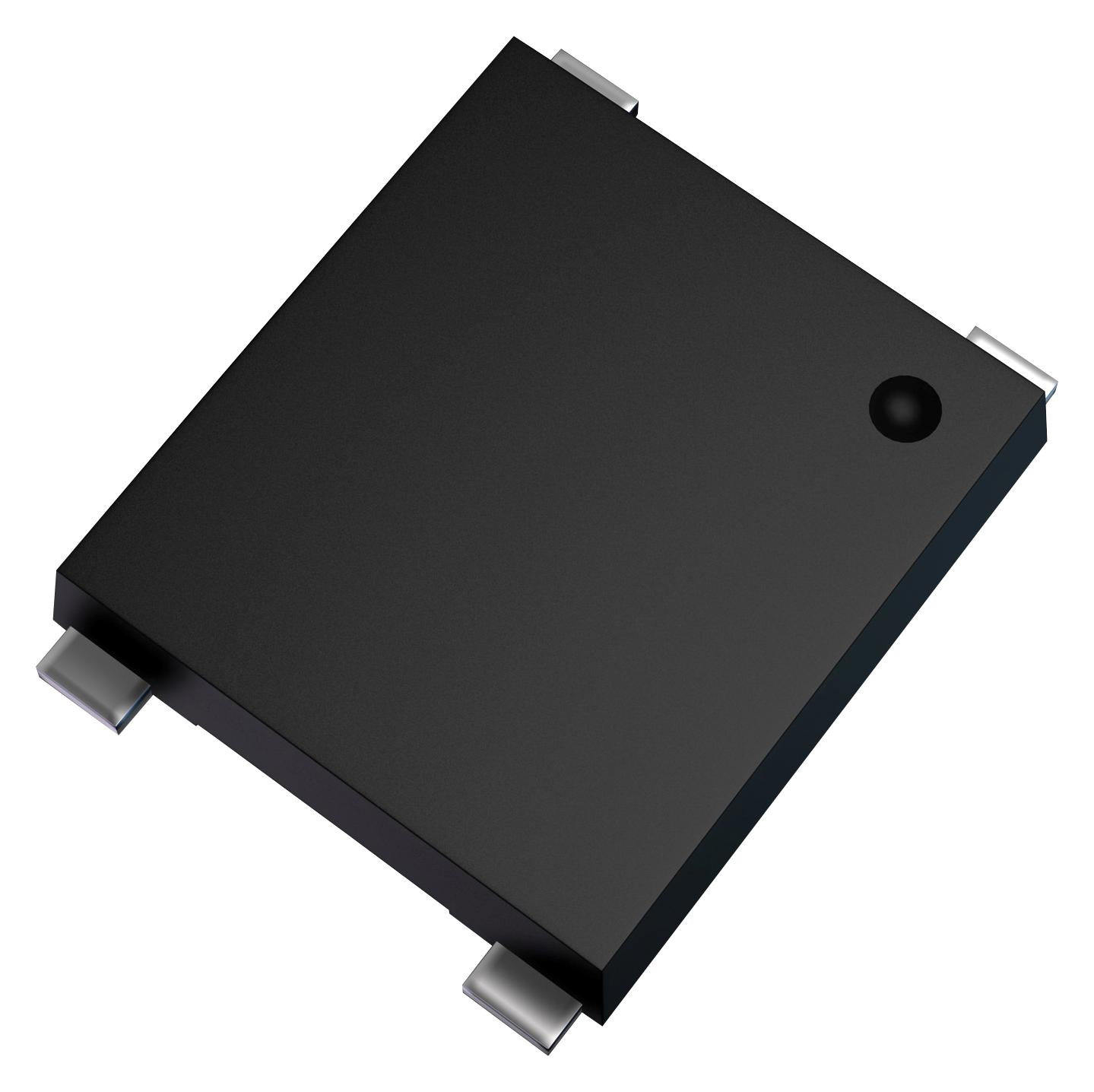

DIODES INC. MSB30M13 Bridge Rectifier
This surface mount glass passivated bridge rectifier is designed for efficient AC to DC full wave rectification in applications such as SMPS, LED lighting, adapters, battery chargers, and home appliances. With a compact, thin profile and rated at 1000V PRV, it features robust construction, lead-free matte tin plated terminals, and complies with RoHS standards. It offers high reliability, easy solderability, and excellent electrical performance, making it ideal for manufacturing in industrial and telecommunication sectors. The device is UL94V-0 rated and moisture resistant level 1, ensuring durability under various operating conditions.
DIODES INC. MSB30M13 Bridge Rectifier Specifications:
- Maximum Repetitive Reverse Voltage Vrrm: 1000V
- Working Peak Reverse Voltage Vaw: 1000V
- DC Blocking Voltage Va: 700V
- RMS Reverse Voltage Vrrms: 700V
- Average Rectified Output Current Io: 3.0A at Ta=+120°C
- Peak Forward Surge Current IFSM: 100A (8.3ms) / 200A (1.0ms)
- Fusing Rating (t<8.3ms): 415A
- Peak Forward Voltage: 0.88V at 3.0A, 125°C; 0.31V at 25°C
- Reverse Leakage Current: 500μA at 1000V, 250°C
- Total Capacitance: 35pF at 4V, 1.0MHz
- Thermal Resistance Junction to Ambient: 11°C/W
- Junction to Case: 8°C/W
- Junction to Lead: 15°C/W
- Operating/Storage Temperature Range: -55°C to +150°C
- Case Material: Molded plastic
- Terminals: Lead-free matte tin finish
- Moisture Sensitivity: Level 1
- UL Flammability Rating: 94V-0
- Size and Package: MSBL
Buy the Buy Diodes Integrated Circuit Part Number MSB30M13 Online
Order the Diodes MSB30M13 surface mount bridge rectifier today to ensure high efficiency and reliability in your power supply applications. With a maximum reverse voltage of 1000V and 3.0A current capacity, this device is perfect for AC to DC conversion in LED lighting, adapters, and home appliances. Its compact design, RoHS compliance, lead-free finish, and UL94V-0 flammability rating make it suitable for diverse industrial and telecommunication uses. Enjoy fast delivery and competitive pricing by purchasing online now.
Buy Diodes MSB30M13 now and experience unmatched reliability and performance in power rectification for your industrial and telecommunication needs.
Frequently Asked Questions
Where can I buy DIODES INC. MSB30M13?
You can click on the BUY or RFQ button to purchase MSB30M13 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part MSB30M13?
You can download the MSB30M13 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of MSB30M13?
DIODES INC.
