DIODES INC. S8MC13 High Current Power Rectifier
The S8MC13 is a high-performance surface mount glass passivated rectifier designed for use in power supplies and industrial applications. It offers an 8.0A current capacity with low forward voltage drop and high surge capability, making it ideal for automated assembly processes. Built with a molded plastic case, UL 94V-0 flammability rating, and RoHS compliance, this diode features a guard ring for transient protection and high surge currents. Its lead-free, halogen- and antimony-free construction ensures environmentally friendly operation while maintaining reliable electrical performance in demanding conditions.
DIODES INC. S8MC13 High Current Power Rectifier Specifications:
- Case: SMC molded plastic
- Flammability: UL 94V-0
- Polarity: Cathode band or notch
- Lead Finish: Matte tin, solderable per MIL-STD-202
- Maximum Repetitive Peak Reverse Voltage: 800V (S8KC), 1000V (S8MC)
- Average Rectified Current: 8.0A @ 75°C
- Peak Surge Current: 200A (8.3ms)
- Peak Reverse Current: 250A
- Forward Voltage: 0.985V
- Thermal Resistance Junction to Terminal: 10°C/W
- Operating Temperature Range: -65°C to +150°C
- Moisture Sensitivity: Level 1
- Weight: Approx. 0.21 grams
- Dimensions: A 5.59-6.22 mm, B 6.60-7.11 mm, Cc 2.75-3.18 mm, D 0.15-0.31 mm, E 7.75-8.13 mm, G 0.10-0.20 mm, H 0.76-1.52 mm, J 2.00-2.50 mm

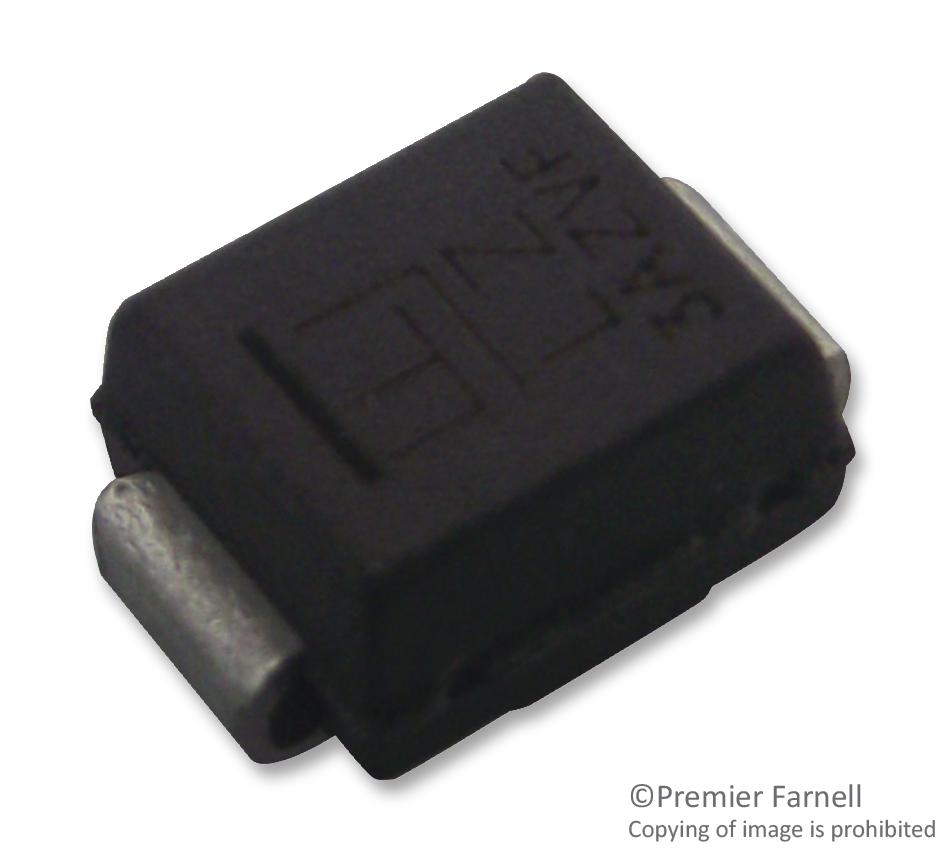

Buy the Diodes Series S8MC High Current Rectifier: S8MC13
Order the Diodes S8MC13 high current rectifier online today to harness its low forward voltage, high surge capacity, and RoHS compliance. Perfect for industrial power supplies and automated assemblies, this surface mount device ensures reliable performance and environmentally friendly operation. With a rugged SMC package, lead-free finish, and UL 94V-0 rated casing, it provides excellent durability and transient protection. Get yours now from our online store to benefit from fast delivery and competitive prices for your power management needs.
Buy Diodes S8MC13 now and experience unmatched reliability and high surge capacity in power rectification.
Frequently Asked Questions
Where can I buy DIODES INC. S8MC13?
You can click on the BUY or RFQ button to purchase S8MC13 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part S8MC13?
You can download the S8MC13 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of S8MC13?
DIODES INC.
