DIODES INC. S2G13F Surface Mount Rectifier
The surface mount rectifier is designed for high current applications, featuring a low profile case ideal for automated assembly. It offers high temperature soldering capability up to 260°C for 10 seconds, ensuring reliable mounting. The rectifier has a molded JEDEC DO-214AA package with solder-plated terminals compliant with MIL-STD-750, Method 2026. It provides a maximum repetitive peak reverse voltage of 400V or 1,000V depending on model, with an average forward current of 2A at 100°C. Its low junction capacitance of 30 pF and thermal resistance facilitate efficient thermal management, operating safely from -55°C to +150°C.
DIODES INC. S2G13F Surface Mount Rectifier Specifications:
- Case: JEDEC DO-214AA molded plastic
- Polarity: Cathode identified by color band
- Maximum repetitive peak reverse voltage: 400V or 1,000V
- RMS voltage: 280V or 700V
- Maximum DC blocking voltage: 400V or 1,000V
- Average forward rectified current: 2A at 100°C
- Peak forward surge current: 50A
- Maximum instantaneous forward voltage: 1.15V at 2A
- Maximum reverse current: 125A at 125°C
- Junction capacitance: 30 pF
- Thermal resistance (junction to ambient): 16°C/W
- Operating/storage temperature: -55°C to +150°C
- Dimensions (Millimeters): A: 43-47, B: 3.3-37, C: 2-23, D: 5.05-5.55, E: 0.2 Typ., F: 0.95-1.55, H: 24-25, I: 1.85-2.15

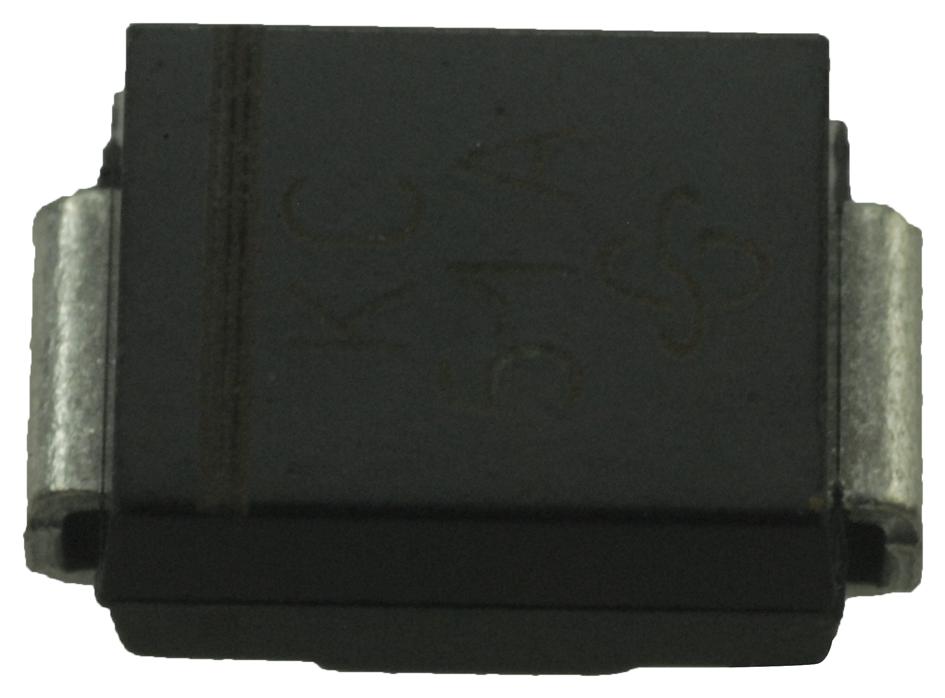

Buy the Buy Multicomp Surface Mount Rectifier Part Number S2G13F Online
Purchase the high-performance surface mount rectifier from Multicomp today to ensure efficient power rectification in your electronic designs. Designed for high current applications, it features a low profile, robust JEDEC DO-214AA package, and high temperature soldering capability, making it ideal for automated manufacturing processes. With ratings up to 1,000V and 2A continuous current at 100°C, this rectifier offers excellent thermal management and reliability across a broad temperature range from -55°C to +150°C. Get yours now for uncompromising performance in industrial and electronic systems.
Buy Multicomp S2G13F now and experience reliable high-current performance in surface mounted packages.
