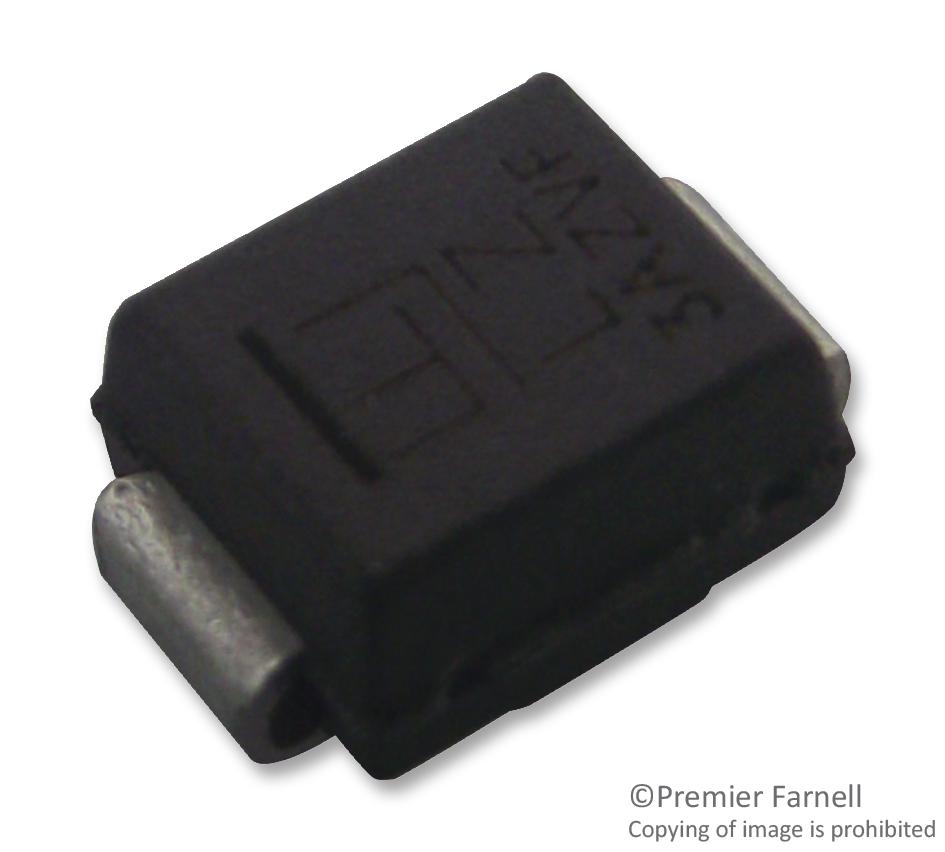

DIODES INC. SBRT5A50SA13 Super Barrier Rectifier Diode
The SBRT5A50SA is a 5A, 50V single trench super barrier rectifier diode designed for high-temperature stability and low forward voltage drop, enhancing efficiency and reliability. Packaged in a low-profile SMA package, it features lead-free, RoHS-compliant, halogen-free construction, suitable for general rectification applications such as power supplies, converters, and motor drives. Its robust structure ensures excellent thermal performance, low leakage current, and durability in industrial and electronic circuit applications, making it ideal for demanding high-temperature environments and high-reliability operations.
DIODES INC. SBRT5A50SA13 Super Barrier Rectifier Diode Specifications:
- Maximum Peak Repetitive Reverse Voltage: 50V
- Average Rectified Output Current: 5A
- Forward Voltage Drop: 0.39V at 2.5A, 0.46V at 5A, 0.32V at 2.5A (125°C), 0.44V at 5A (125°C)
- Peak Forward Surge Current: 70A for 8.3ms
- Thermal Resistance Junction to Ambient: 40°C/W
- Thermal Resistance Junction to Case: 25°C/W
- Operating/Storage Temperature Range: -55°C to +150°C
- Case Material: Molded plastic, UL 94V-0
- Terminals: Matte tin annealed over copper leadframe
- Moisture Sensitivity: Level 1 per J-STD-020
- Dimensions (mm): a 4.00–4.60, B 1.63, C 0.15–0.31, D 4.80–5.59, G 0.05–0.20, H 0.76–1.52, J 1.96–2.40
- Marking: YWW (Year and Week code)
Buy the Buy Diodes Super Barrier Rectifier Part Number SBRT5A50SA Online
Order the Diodes SBRT5A50SA online today to benefit from the high current capacity, low forward voltage drop, and excellent thermal performance of this reliable rectifier diode. Perfect for industrial power supply, motor drives, and other high-temperature applications, this lead-free, RoHS-compliant device ensures durability and efficiency in your electronic systems. Take advantage of fast shipping and competitive pricing to ensure your projects proceed smoothly with genuine, high-quality components. Shop now for dependable rectification solutions.
Buy Diodes SBRT5A50SA now and experience unmatched reliability and high-temperature performance in rectifier applications.
