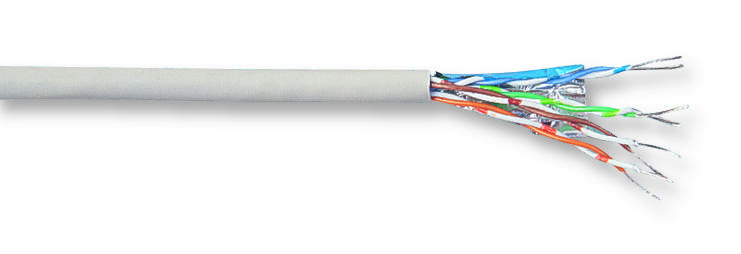

DRAKA 60018045 Cat 5e Network Cable
The Farnell S26 Cat.5e PVC patch cable is designed for work area and patch cord applications, supporting standards like IEEE 802.3 and ISO/IEC 11801. It features stranded bare copper conductors with polyethylene insulation, a PVC sheath, and aluminum-laminated foil shielding for electromagnetic interference reduction. The cable offers excellent electrical properties, including a loop resistance of 260 Q/km, insulation resistance of 2000 MQ*km, and impedance around 10059 ohms at 100 MHz. Its flexible construction ensures ease of installation with a bending radius > 20 mm and flexible temperature ranges from -20°C to +60°C during operation.
DRAKA 60018045 Cat 5e Network Cable Specifications:
- Conductor: stranded bare copper wire 0.48 mm (AWG 26)
- Insulation: Polyethylene, 0.95 mm thick
- Shielding: Aluminum-laminated plastic foil with stranded drain wire AWG26 tinned
- Sheath: PVC
- Outer diameter: 5.4 mm
- Bending radius: > 20 mm without load, 40 mm with load
- Temperature range: -20°C to +60°C during operation, 0°C to +50°C during installation
- Electrical properties at 20°C: Loop resistance 260 Q/km, insulation resistance 2000 MQ*km
- Impedance: ~10059 ohms at 100 MHz, Velocity of propagation: ~67%, attenuation at 100 MHz: 3.0 dB/10m
- Standards supported: IEEE 802.3, EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B.2
Buy the Draka Series Farnell S26 Cat.5e PVC: 60018045
Get your Draka Series Farnell S26 Cat.5e PVC patch cable online today and enjoy dependable networking solutions for your home or office. Perfect for high-speed data transfer, this cable ensures secure connections and minimises interference with its shielded design. Its flexible construction allows easy installation in tight spaces, and the PVC sheath guarantees durability and long-lasting performance. Order now to benefit from high-quality networking components that support current standards and provide excellent electrical properties for all your connectivity needs.
Order your Draka Series Farnell S26 Cat.5e PVC cable today and enhance your network's performance with reliable high-speed data transfer.
Frequently Asked Questions
Where can I buy DRAKA 60018045?
You can click on the BUY or RFQ button to purchase 60018045 from an authorized DRAKA distributor.
How do I troubleshoot issues or seek technical support for part 60018045?
You can download the 60018045 datasheet or visit the DRAKA website for support.
Who is the manufacturer of 60018045?
DRAKA
