E-SWITCH 32002E1109RED Industrial Pushbutton Switch
This Series 320 pushbutton switch with a red cap is designed for industrial control and switching applications. It features high reliability, gold-over-stainless steel contact, and silver-plated copper alloy terminals. The device offers tactile feedback, a travel distance of 6mm, and a nylon 4/6 housing. It supports up to 25mA at 50 VDC, with an operating temperature range of -20°C to 70°C, making it suitable for telecommunications, networking, and electronic equipment requiring robust switching performance.
E-SWITCH 32002E1109RED Industrial Pushbutton Switch Specifications:
- Contact Rating: 25mA @ 50 VDC
- Life Expectancy: 1,000,000 cycles min.
- Contact Resistance: 50mΩ, max. initial @ 2-4 VDC, 100mA
- Insulation Resistance: ≥1,000MΩ min.
- Dielectric Strength: >500 VAC rms at sea level
- Actuation Force: 135 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 6mm Typ.
- Housing: Nylon 4/6
- Contact Material: Gold over stainless steel
- Terminals/Contacts: Silver plated copper alloy
- Cap Colors: Black, Grey, Yellow, Blue, Green, White, Red
- Cap Material: ABS
- W/ Finger Recess for easier operation

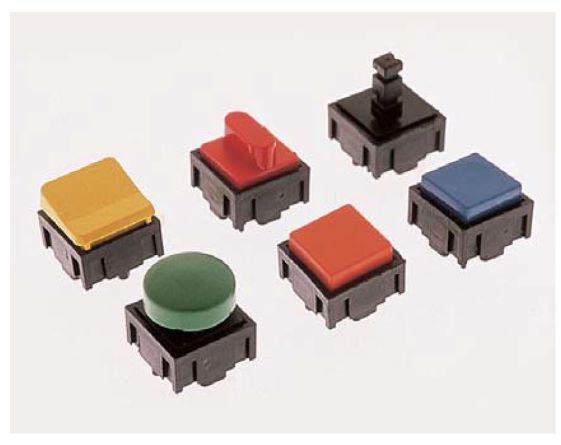

Buy the Buy aT SSR eS e-awirce Switch Part Number 32002E1109RED Online
Experience the reliability and durability of this Series 320 pushbutton switch, featuring a red cap and high-quality contacts. Ideal for industrial controls, electronic switching, and equipment requiring tactile feedback. With its nylon housing, gold-over-stainless steel contacts, and silver-plated copper alloy terminals, it ensures long-lasting performance. Suitable for telecommunication and networking applications, supporting up to 25mA at 50 VDC, with a travel of 6mm and operating temperatures from -20°C to 70°C, making it a versatile and dependable switching solution.
Buy aT SSR eS e-awirce 32002E1109RED switch now and experience durable performance suitable for industrial control systems.
Frequently Asked Questions
Where can I buy E-SWITCH 32002E1109RED?
You can click on the BUY or RFQ button to purchase 32002E1109RED from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 32002E1109RED?
You can download the 32002E1109RED datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 32002E1109RED?
E-SWITCH
