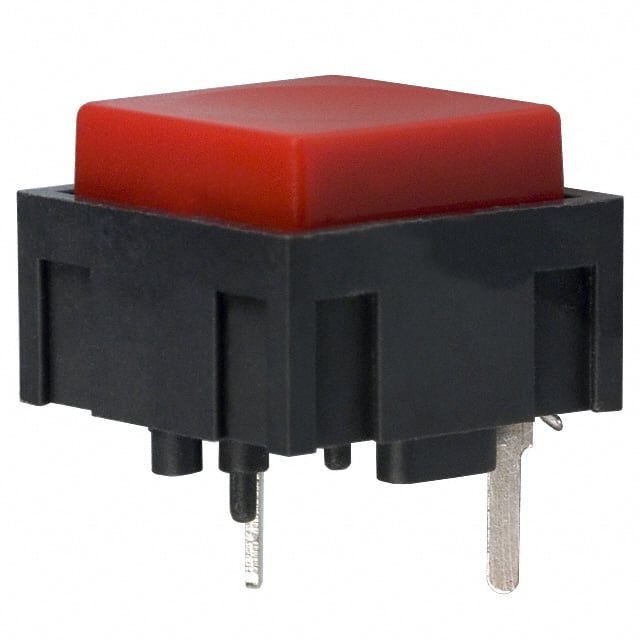

E-SWITCH 320E11RED pushbutton switch
The Series 320 pushbutton switch with matching cap provides a durable and reliable interface suitable for multiple control applications. Featuring high operational reliability, gold-over-stainless-steel contacts, and silver-plated copper alloy terminals, it offers excellent tactile feedback. Its nylon housing enhances durability, while multiple cap and color options improve versatility. The switch has a contact rating of 25mA at 50 VDC, a life expectancy of over one million cycles, and operates efficiently within temperatures from -20°C to 70°C. It is ideal for telecommunications, networking, computing, instrumentation, and low power on/off applications, ensuring dependable performance in demanding environments.
E-SWITCH 320E11RED pushbutton switch Specifications:
- Contact Rating: 25mA @ 50 VDC
- Life Expectancy: 1,000,000 cycles min.
- Contact Resistance: 50mΩ, max. initial @ 2-4 VDC, 100mA
- Insulation Resistance: ≥1,000MΩ min.
- Dielectric Strength: >500 VAC rms at sea level
- Actuation Force: 135 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 6mm Typ.
- Housing: Nylon 4/6
- Feature: Multiple cap & color options (Black, Grey, Yellow, Blue, Green, White, Red)
- Contact Material: Gold over stainless steel
- Terminals: Silver plated copper alloy
- Cap Material: ABS
- Mounting: Snap-in or panel mount
- Dimensions: Typical actuation travel 6mm, housing dimensions compliant with standard control panels
Buy the Industrial Switches 320E11RED – Reliable Pushbutton Switch for Industrial Applications
Purchase the durable Series 320 pushbutton switch online today and enhance your control panel with high reliability and versatile color options. This switch features gold-over-stainless-steel contacts, silver-plated copper terminals, and a nylon housing for superior durability. Ideal for telecommunications, networking, computing, instrumentation, and low power on/off applications, it offers over one million cycles of lifespan, ensuring long-term performance. Easy to install with multiple cap options, this switch guarantees dependable operation in demanding environments. Order now for fast delivery and reliable control solutions.
Get PCB pushbutton switch 320E11RED today—built for precision and long-lasting durability in control and automation systems.
Frequently Asked Questions
Where can I buy E-SWITCH 320E11RED?
You can click on the BUY or RFQ button to purchase 320E11RED from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 320E11RED?
You can download the 320E11RED datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 320E11RED?
E-SWITCH
