E-SWITCH 500RDP3S1M2RE Switch
The 500R series switch offers reliable switching solutions with up to 40,000 cycles lifecycle, IP67 sealing, and electrical ratings of 0.4VA at 20V. It features SPDT and DPDT options, gold contact resistance of 50mΩ max, insulation resistance of 500MΩ at 250VDC, and dielectric strength of 500VAC RMS. Designed for durability, it operates within -20°C to 80°C, with 2- or 3-position configurations and travel distances of 1.9mm or 0.95mm, making it ideal for vandal-resistant and detection applications.
E-SWITCH 500RDP3S1M2RE Switch Specifications:
- Electrical Rating: 0.4VA Max. @ 20V (AC or DC max)
- Sealing: IP67 protection
- Life Expectancy: 40,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 500MΩ Min. at 250VDC
- Dielectric Strength: 500VAC RMS
- Operating Temperature: -20°C to 80°C
- Supported Configurations: 2- or 3-position
- Travel Distance: 1.9mm for 2-position, 0.95mm for 3-position
- Contact Material: Gold contact
- Use Cases: vandal-resistant, detector switching
- Rated for IP67 sealing, suitable for harsh environments
- Suitable for applications requiring durable and reliable switching

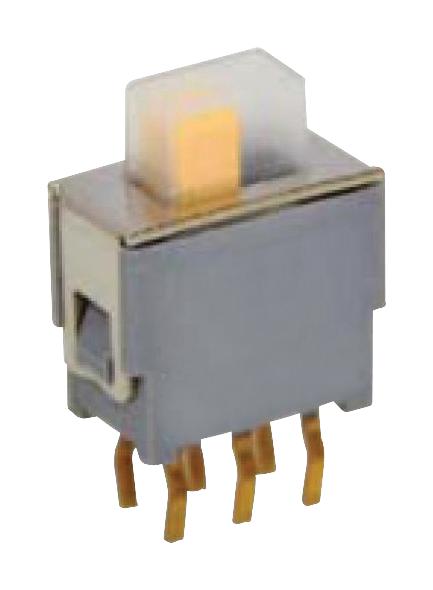

Buy the Bey Series Switch: 500RDP3S1M2RE
Discover the high-performance Bey Series switch, designed for durability and reliability in demanding environments. With IP67 sealing and a lifecycle of 40,000 cycles, this switch features gold contacts, a compact design, and options for SPDT and DPDT configurations. It operates effectively from -20°C to 80°C, and its sealed construction ensures optimal protection against dust and moisture. Ideal for vandal-resistant, detection, and industrial switching applications, this switch guarantees long-lasting operation and superior performance in challenging conditions.
Buy Bey Series 500RDP3S1M2RE switch now and experience unmatched reliability and performance in vandal-resistant and detection applications.
Frequently Asked Questions
Where can I buy E-SWITCH 500RDP3S1M2RE?
You can click on the BUY or RFQ button to purchase 500RDP3S1M2RE from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 500RDP3S1M2RE?
You can download the 500RDP3S1M2RE datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 500RDP3S1M2RE?
E-SWITCH
