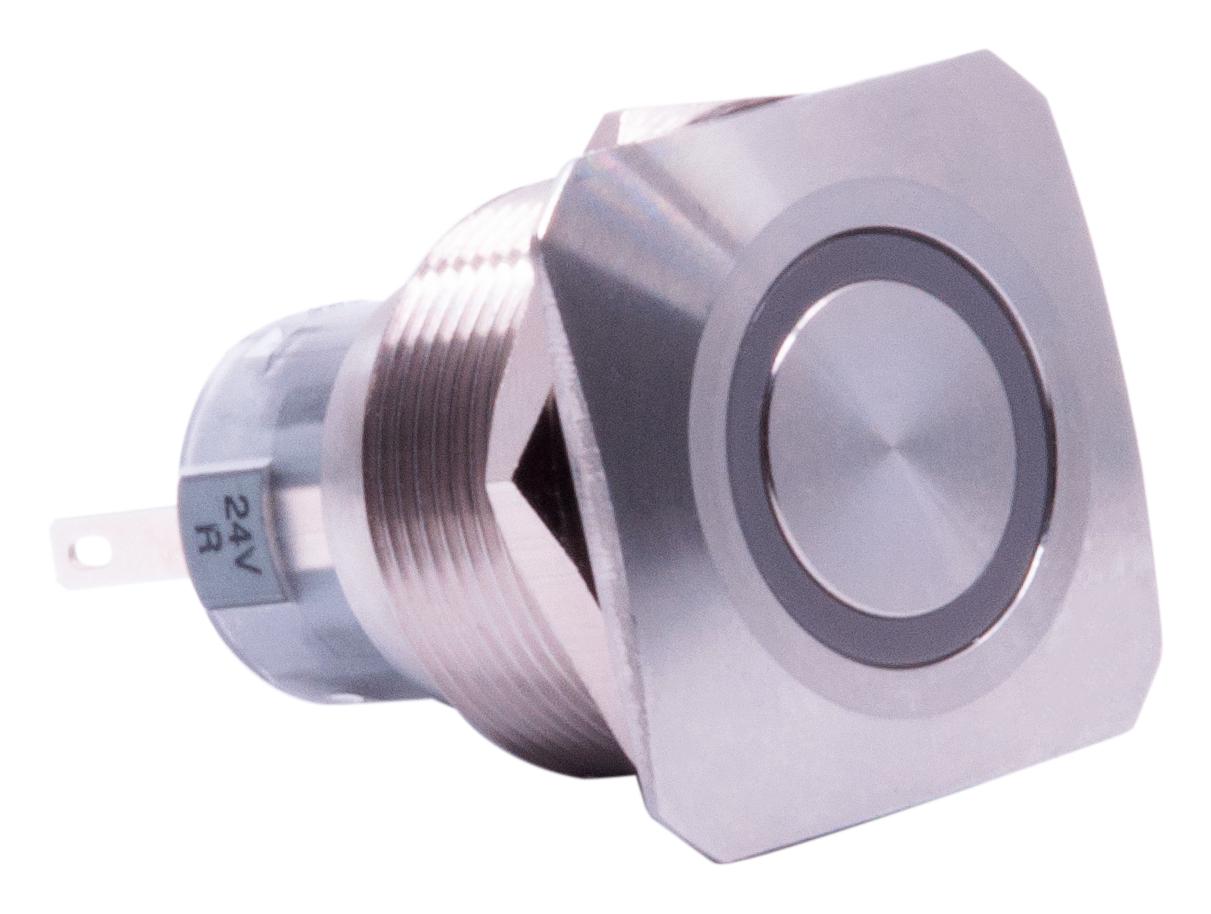

E-SWITCH PVS7F2GSS331 Anti-Vandal Switch
The PVS7 series anti-vandal switch offers robust IP65-rated protection, multiple actuation options, and LED illumination to suit industrial control panels. Featuring a stainless steel body with a 22mm diameter panel cutout, it supports SPDT and DPDT contact arrangements, with optional soldered or wire leads. Available with ring or flat illuminated options in various colors, the switch ensures durability with a force of 4 N and a travel of 2.50mm. Ideal for demanding environments, it combines vandal resistance with versatile electrical configurations.
E-SWITCH PVS7F2GSS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 1000 MO Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT, DPDT
- Actuation Force: 4 N
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Body Material: Stainless Steel
- Panel Cutout Diameter: 22mm
- Illumination Voltage: 3-250V options available
- LED Color Options: White, Red, Orange, Green, Blue, Yellow, RGB
- Wire Leads Length: 300mm
- Current Rating: 2A
- Switch Type: Keylock, Navigation, Pushbutton, Rocker, Rotary, Slide, Snap Action, Tactile, Toggle
Buy the Stainless Steel PVS7F2GSS331 – Reliable Vandal-Resistant Switch for Industrial Applications
Purchase the robust anti-vandal switch designed for industrial control panels online today. Featuring stainless steel construction, IP65 protection, multiple illumination and contact options, this switch ensures long-lasting durability and reliable performance. Its versatile configurations include SPDT and DPDT contact arrangements, with optional soldered or wire leads. Perfect for demanding applications, the switch withstands tough environments, providing secure operation with a travel of 2.50mm and an actuation force of 4 N. Order now for efficient control solutions.
Get PVS7F2GSS331 today—built for durability, versatile operation, and LED illumination in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH PVS7F2GSS331?
You can click on the BUY or RFQ button to purchase PVS7F2GSS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVS7F2GSS331?
You can download the PVS7F2GSS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVS7F2GSS331?
E-SWITCH
