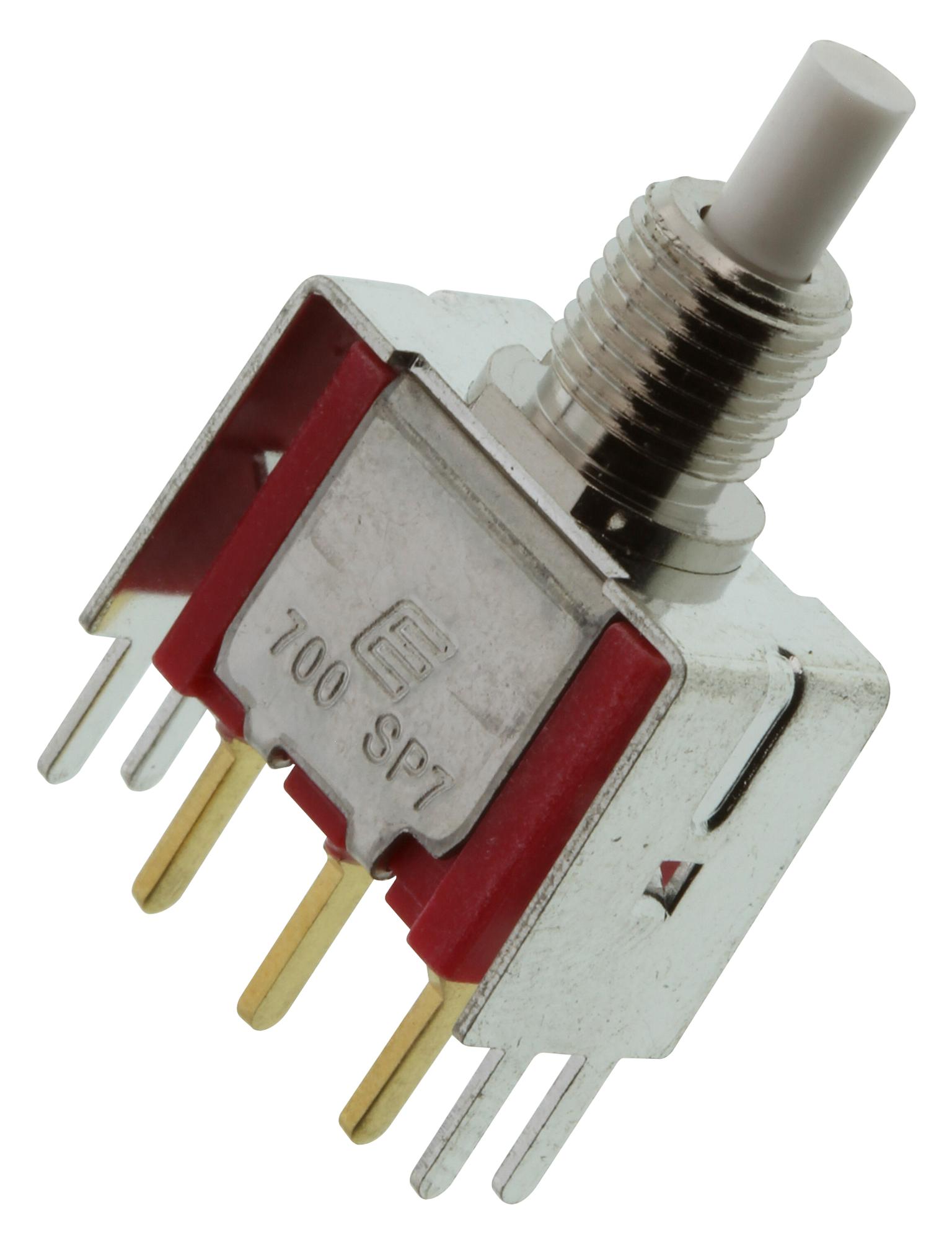

E-SWITCH 700SP7B10VS2RE Snap-Acting Pushbutton Switch
The E-SWITCH 700 series is a versatile range of snap-acting pushbutton switches suitable for a wide array of industrial and commercial applications. These switches offer a positive tactile feedback and are designed for durability and long-term reliability. Common applications include telecommunications equipment, networking devices, computers, servers, performance audio systems, external hard drives, and modems. The switch features gold or silver plated contacts for optimal performance and low contact resistance. Various bushing, termination, and cap options are available to meet specific design requirements.
E-SWITCH 700SP7B10VS2RE Snap-Acting Pushbutton Switch Specifications:
- Contact Ratings: 1A @ 250 VAC, 3A @ 120 VAC or 28 VDC
- Life Expectancy: 50,000 cycles typical
- Contact Resistance: 20mΩ max. typical @ 2-4 VDC
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 1,000 V RMS @ sea level
- Actuation Force: 200 ± 50 gf
- Operating Temperature: -30°C to +85°C
- Travel: 1.20mm Typ
- Case Material: DAP
- Plunger Material: Glass filled nylon or glass filled polyester
- Bushing Material: Nickel plated brass
- Frame Material: Stainless steel
- Contact Material: Silver or Gold plated copper alloy
Buy the 700SP7B10VS2RE E-SWITCH Snap-Acting Pushbutton Switch | myMectronic
Purchase the E-SWITCH 700SP7B10VS2RE securely and efficiently to ensure your project's success.
Buy Now
Frequently Asked Questions
Where can I buy E-SWITCH 700SP7B10VS2RE?
You can click on the BUY or RFQ button to purchase 700SP7B10VS2RE from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 700SP7B10VS2RE?
You can download the 700SP7B10VS2RE datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 700SP7B10VS2RE?
E-SWITCH
