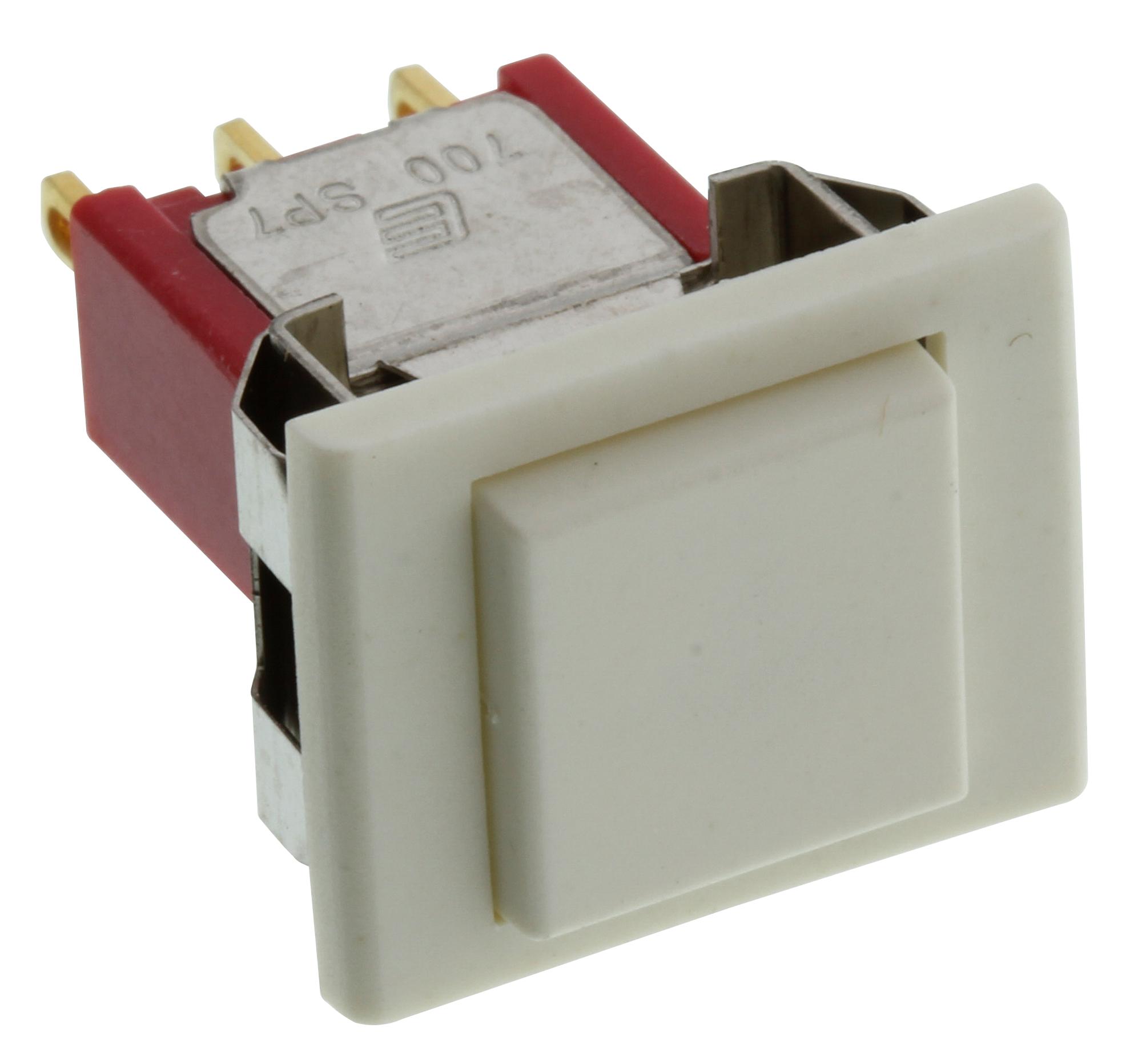

E-SWITCH 700SP7M1REAP2WHTWHT Snap-Acting Pushbutton Switch
The E-SWITCH 700 series snap-acting pushbutton switches offer a robust and reliable solution for a wide range of industrial applications. These switches feature a snap-acting contact design, providing a positive and distinct on/off action. Available with gold or silver plated contacts, they are suitable for both low-power and performance audio applications. The switches are designed for easy integration with multiple termination options and snap-in panel mount configurations, making them ideal for telecommunications, networking, computer/server, and instrumentation systems. They operate effectively within a temperature range of -30°C to +85°C and offer a travel of 1.20mm typical.
E-SWITCH 700SP7M1REAP2WHTWHT Snap-Acting Pushbutton Switch Specifications:
- Contact Ratings: 1A @ 250 VAC, 3A @ 120 VAC or 28 VDC
- Life Expectancy: 50,000 cycles typical
- Contact Resistance: 20mΩ max. typical @ 2-4 VDC
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 1,000 V RMS @ sea level
- Actuation Force: 200 ± 50 gf
- Operating Temperature: -30°C to +85°C
- Travel: 1.20mm Typ
- Case Material: DAP
- Plunger Material: Glass filled nylon or glass filled polyester
- Bushing Material: Nickel plated brass
- Frame Material: Stainless steel
- Contact Material: Silver or Gold plated copper alloy
Buy the 700SP7M1REAP2WHTWHT E-SWITCH Snap-Acting Pushbutton Switch | myMectronic
Purchase the E-SWITCH 700SP7M1REAP2WHTWHT securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy E-SWITCH 700SP7M1REAP2WHTWHT?
You can click on the BUY or RFQ button to purchase 700SP7M1REAP2WHTWHT from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 700SP7M1REAP2WHTWHT?
You can download the 700SP7M1REAP2WHTWHT datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 700SP7M1REAP2WHTWHT?
E-SWITCH
