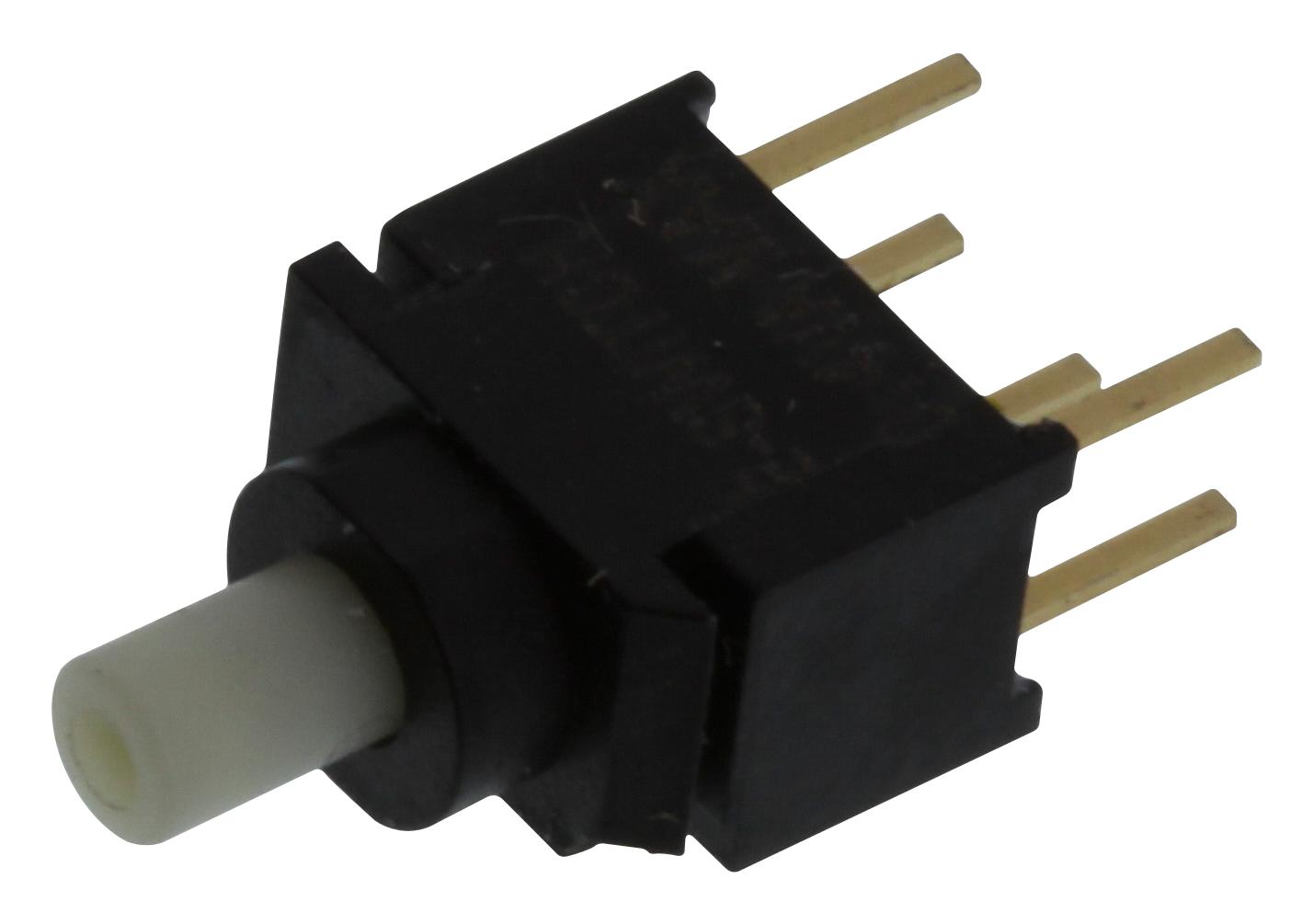

E-SWITCH 800USP8P1A1M2RE Pushbutton Switch
The 800U Series pushbutton switch offers reliable SPDT and DPDT functions with an anti-vandal design. It features an ultra-miniature size, IP67 rating, and a mechanical life of 40,000 cycles. The switch operates at 0.4VA @ 20V max, with contact resistance of 100mΩ and insulation resistance of 500MΩ. It supports multiple termination options including M2, M6, and M7, with various actuator, bushing, and terminal configurations. Suitable for demanding industrial and control applications, the switch provides durability with a dielectric strength of 500VAC and operating temperatures from -30°C to 85°C.
E-SWITCH 800USP8P1A1M2RE Pushbutton Switch Specifications:
- Electrical Rating: 0.4VA @ 20V Max (AC/DC)
- Mechanical Life: 40,000 Cycles
- Electrical Life: 6,000 Cycles
- Contact Resistance: 100mΩ initial
- Insulation Resistance: 500MΩ Min.
- Dielectric Strength: 500VAC
- Operating/Storage Temperature: -30°C to 85°C
- Travel: 1.0mm
- Circuit Function: SPDT, DPDT
- Actuation Force: 250 gf
- Termination Types: M2, M6, M7
- Dimensions: Approximately 7.00 mm (height), 4.50 mm (width), 3.30 mm (depth)
- Sealed IP67 rated for durability
- Multiple contact cap colors and configurations available
Buy the Elo Series 800U Pushbutton Switch: 800USP8P1A1M2RE
Order the Elo 800USP8P1A1M2RE pushbutton switch online now and experience reliable performance with IP67 sealing, ultra-miniature size, and multiple contact options. Perfect for industrial control panels, automation, and vandal-proof installations, this switch offers a robust mechanical life of 40,000 cycles and an electrical life of 6,000 cycles. Its compact design, corrosion resistance, and multiple termination choices ensure seamless integration into your systems, providing durability, high dielectric strength, and operational stability in demanding environments.
Get Elo 800USP8P1A1M2RE today—built for precise control, vandal resistance, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH 800USP8P1A1M2RE?
You can click on the BUY or RFQ button to purchase 800USP8P1A1M2RE from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 800USP8P1A1M2RE?
You can download the 800USP8P1A1M2RE datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 800USP8P1A1M2RE?
E-SWITCH
