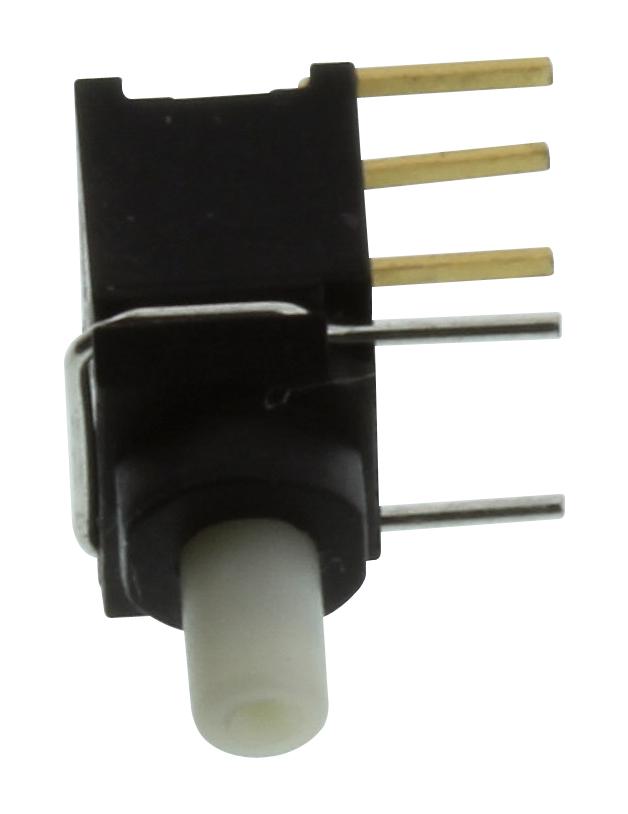

E-SWITCH 800USP8P1A1M6RE Pushbutton Switch
The 800U Series Pushbutton Switch is a high-quality, anti-vandal switch with SPDT and DPDT options, designed for durable industrial applications. Featuring an IP67 rating, up to 40,000 mechanical cycles, and an electrical rating of 0.4VA @ 20V, it offers reliable performance in harsh environments. The switch includes multiple termination options, various cap colors, and is suitable for both momentary and maintained circuit functions, making it ideal for control panels, automation systems, and outdoor machinery.
E-SWITCH 800USP8P1A1M6RE Pushbutton Switch Specifications:
- Electrical Rating: 0.4VA @ 20V Max (AC or DC)
- Mechanical Life: 40,000 Cycles
- Electrical Life: 6,000 Cycles
- Contact Resistance: 100mΩ initial
- Insulation Resistance: 500 MΩ Min.
- Dielectric Strength: 500VAC
- Operating/Storage Temperature: -30°C to 85°C
- Travel: 1.0mm
- Circuit Function: SPDT, DPDT
- Actuation Force: 250 gf
- Dimensions vary depending on configuration, typical mounting hole diameter 4.0mm or 4.0 dia.
- Mounting: Through-hole or PCB mount options
- Sealed IP67 rated for dust and water resistance
Buy the Buy Brand Name 800U Series Pushbutton Switch Part Number 800USP8P1A1M6RE Online
Order the Brand Name 800USP8P1A1M6RE pushbutton switch online today and experience reliable, corrosion-resistant control with IP67 sealing. Perfect for industrial automation, outdoor equipment, and control panels, this switch offers high durability with up to 40,000 mechanical cycles, multiple termination options, and various color caps to match your system’s design. Its compact design and sealed construction make it ideal for harsh environments, ensuring long-lasting performance and easy installation. Buy now to enhance your equipment’s reliability.
Get Brand Name 800USP8P1A1M6RE today—built for durability, enhanced environmental protection, and smooth operation in harsh industrial settings.
Frequently Asked Questions
Where can I buy E-SWITCH 800USP8P1A1M6RE?
You can click on the BUY or RFQ button to purchase 800USP8P1A1M6RE from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 800USP8P1A1M6RE?
You can download the 800USP8P1A1M6RE datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 800USP8P1A1M6RE?
E-SWITCH
