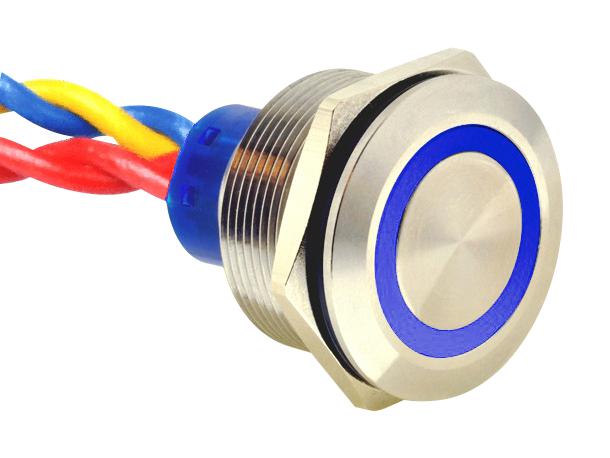

E-SWITCH ULV8FWBSS344 Anti-Vandal Switch
The ULV8 Series anti-vandal switches are durable, high-quality electrical switches designed for various industrial and outdoor applications. Featuring a 25mm diameter panel cutout, they offer IP67 moisture protection, making them ideal for harsh environments. These switches support SPDT or DPDT contact arrangements, with an operating temperature range of -20°C to 55°C. They have a mechanical life of 1,000,000 cycles for momentary operation, electrical life of 50,000 cycles, and contact resistance of 50mΩ. They offer optional illumination voltage, soldered wire leads, and meet UL/cUL safety standards.
E-SWITCH ULV8FWBSS344 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
Buy the Vandal Series Anti-Vandal Switch: ULV8FWBSS344
Purchase the ULV8 Series anti-vandal switch online today for reliable performance in demanding conditions. Designed with a 25mm diameter panel cutout, IP67-rated waterproof protection, support for SPDT or DPDT contact arrangements, high durability with a mechanical life of 1 million cycles, and UL certification. This switch is ideal for industrial and outdoor applications, featuring optional illumination voltages and soldered wire leads. Ensure your project’s safety, reliability, and longevity with this high-quality, vandal-resistant switch available now for quick and secure online ordering.
Get ULV8 Series anti-vandal switch today—built for harsh environments and long-lasting durability.
Frequently Asked Questions
Where can I buy E-SWITCH ULV8FWBSS344?
You can click on the BUY or RFQ button to purchase ULV8FWBSS344 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV8FWBSS344?
You can download the ULV8FWBSS344 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV8FWBSS344?
E-SWITCH
